Genuine Toyota 4Runner Blower Motor

Toyota 4Runner Blower Motor Parts Questions & Answers

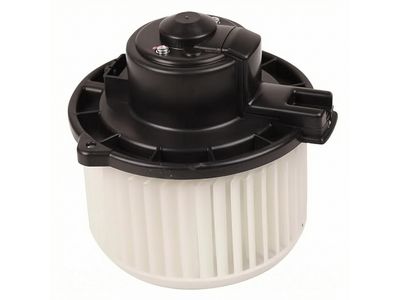

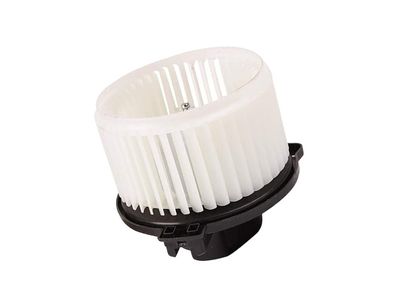

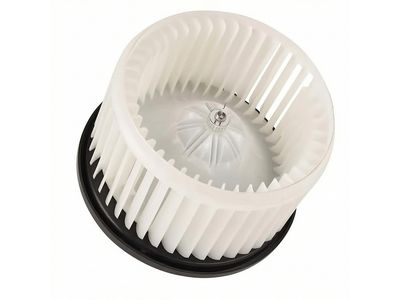

• Motor Sub-Assy, Heater Blower, W/Fan
  87103-35021
  Q: What are the troubleshooting steps for a non-working blower unit in a Toyota T100,Toyota 4Runner and Toyota Tacoma?

  A: Ensure you have the anti-theft code before disconnecting the battery. To fix a non-working blower unit, check the fuse and connections. The blower unit is under the dash or passenger seat. If the blower motor doesn't work, check for battery voltage. If there's no voltage, the issue could be with the ignition feed circuit, blower switch, heater main relay, or motor circuit. If voltage is present but the motor doesn't work, the blower resistor or heater/air conditioning control switch may be faulty. To replace the blower motor, remove the wiring connector bracket, mounting screws, and lower the blower assembly. The fan can be reused on the new motor. For 4Runner models, remove the passenger seat to access the rear blower motor. Installation is the reverse of removal. Check operation after installation.
• Motor Sub-Assy, Blower W/Fan
  87103-35040
  Q: How to remove and install a Blower Motor and Blower Motor Resistor?

  A: The blower unit is under the dash, below the glovebox. Remove the trim panel and blower motor connector. Take out the three screws and lower the blower assembly. Remove the clamp and separate the fan from the motor. To install, reverse these steps. The Blower Motor Resistor is on the blower duct under the dash. Remove the trim panel, disconnect the controller connector, and remove screws. Take out the Blower Motor Resistor. To install, reverse the process.
