Genuine Toyota Echo Intake Manifold
Engine Intake ManifoldEnter your vehicle info to find more parts and verify fitment
- Select Vehicle by VIN
- Select Vehicle by Model
Select by VIN
orEnter your VIN for the most accurate results.Enter your VIN for the most accurate results.
Select by Model
-- Select Make --
-- Select Model --
-- Select Year --
2 Intake Manifolds found

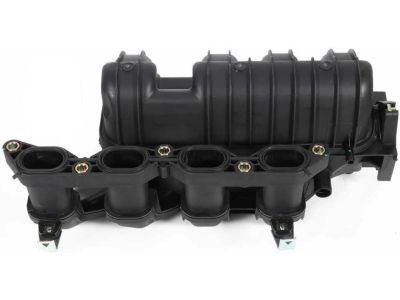

Toyota Echo Manifold, Intake
Part Number: 17101-21030- Replaced by: 17120-21020
$197.01 MSRP: $282.50You Save: $85.49 (31%)
Toyota Echo Manifold, Intake
Part Number: 17120-21020- Other Name: Intake Manifold
- Replaces: 17101-21030
$197.01 MSRP: $282.50You Save: $85.49 (31%)
Toyota Echo Intake Manifold Parts Questions & Answers
- Q: How to remove and reinstall the inlet manifold?A: The Intake Manifold is made of plastic, so avoid striking it or using excessive force during removal. To begin, drain the cooling system and remove the throttle body and coolant filler neck (on later models). Set aside the engine oil dipstick. Remove the nuts securing the wiring harness brackets and lift the harness clear. Unclip the wiring harness from the side of the manifold. Disconnect the breather hose and brake servo vacuum hose from the ports on the inlet manifold. On early models, disconnect the hoses from the coolant filler neck and remove it. Remove the three central bolts and two end nuts to withdraw the manifold from the cylinder head. Remember to use a new one-piece gasket when refitting and ensure the mating faces are clean. Finally, tighten the inlet manifold nuts and bolts to the specified torque.
