Genuine Toyota Highlander CV Boot

Toyota Highlander CV Boot Parts Questions & Answers

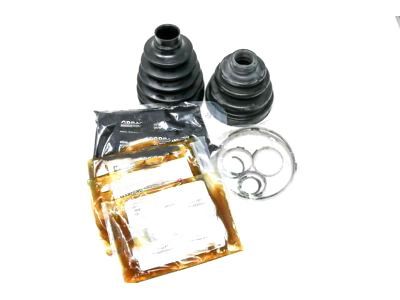

• Front Cv Joint Boot Kit, In Outboard, Right
  04427-08140
  Q: What are the step-by-step procedures for disassembling and reassembling the Driveaxle boot?

  A: For disassembly, start by mounting the driveaxle in a vise with wood-lined jaws to prevent damage. Check the CV joint for play and smooth operation throughout its range of motion. If a boot is torn, carefully pry up the clamps' retaining tabs to loosen them and slide them off. Pry up the edge of the outer boot and push it away from the CV joint, then pull the inner CV joint boot back from the housing and slide the housing off the tripod. Mark the tripod and axleshaft for reassembly. Remove the tripod joint snap-ring, and using a hammer and brass punch, drive the tripod joint from the driveaxle. Cut off or remove both boots if necessary. Clean all components and inspect for wear. For reassembly, wrap the splines on the inner end of the axleshaft with tape to protect the boots, then slide the clamps and boot(s) onto the shaft. Place the tripod on the shaft, apply grease to the assembly and housing, insert the tripod, and pack grease around it. Slide the boot into place, adjust the driveaxle length, equalize boot pressure, and tighten the clamps. Finally, install the driveaxle assembly.
• Front Cv Joint Boot Kit, In Outboard, Left
  04427-0T030
  Q: How to inspect and diagnose steering, CV Boot and suspension components?

  A: Check for free play by rocking the steering wheel, indicating worn components. Excessive body movement or binding when turning may suggest faulty steering or suspension. Test shock absorbers by pushing down each vehicle corner. Replace shocks if it doesn't level within two bounces. Raise the vehicle on jack stands. Check tires for wear and inflation. Inspect the universal joint for damage and the steering linkage for looseness. Test ball joints by moving each lower arm. Check ball joint boots for damage. Replace if needed. Clean CV boots to prevent deterioration. Inspect CV boots for damage. Replace if necessary.
