Genuine Toyota MR2 Radiator

Cooling Radiator

Enter your vehicle info to find more parts and verify fitment

  • Select Vehicle by VIN
  • Select Vehicle by Model
Select by VIN
Enter your VIN for the most accurate results.
Enter your VIN for the most accurate results.
or
Select by Model
-- Select Make --
-- Select Model --
-- Select Year --

7 Radiators found

  • Toyota MR2 Radiator - 16400-74600
    View related parts

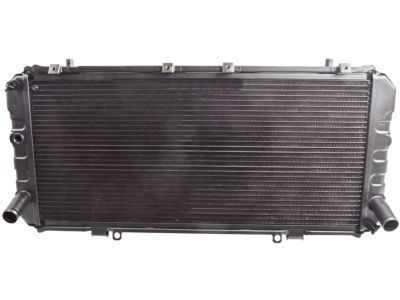

    Toyota MR2 Radiator Assembly

    Part Number: 16400-74600
    • Other Name: Radiator Assy; Radiator
    • Replaces: 16400-74610
    More Info
    Fits the following Vehicles:
    • 1990-1995 Toyota MR2 | 4 Cyl 2.0L, 4 Cyl 2.2L | 3SGTE, 5SFE; 3SGTE; SW20L-ACMZZA, 5SFE; SW21L-ACPZKA, SW20L-AJMZZA, SW20L-AJMZZK, SW21L-AJPZKA
    Less Info
  • Toyota MR2 Radiator - 16400-16020
    View related parts

    Toyota MR2 Radiator Assembly

    Part Number: 16400-16020
    • Other Name: Radiator Assy
    • Replaced by: 16400-16030
    More Info
    Fits the following Vehicles:
    • 1985-1987 Toyota MR2 | GT | 4 Cyl 1.6L | 4AGELC; 4AGELC; AW11L-WCMQFA, AW11L-WCMQFK, AW11L-WJMQFA, AW11L-WJMQFK
    Less Info
  • Toyota MR2 Radiator - 16400-74620
    View related parts

    Toyota MR2 Radiator Assembly

    Part Number: 16400-74620
    • Other Name: Radiator Assy; Radiator
    More Info
    Fits the following Vehicles:
    • 1990-1995 Toyota MR2 | 4 Cyl 2.2L | 5SFE; 5SFE; SW21L-ACMZKA, SW21L-AJMZKA, SW21L-AJMZKK
    Less Info
  • Toyota MR2 Radiator - 16400-74610
    View related parts

    Toyota MR2 Radiator Assembly

    Part Number: 16400-74610
    • Other Name: Radiator Assy
    • Replaced by: 16400-74600
    More Info
    Fits the following Vehicles:
    • 1990-1995 Toyota MR2 | 4 Cyl 2.0L | 3SGTE; 3SGTE; SW20L-ACMZZA, SW20L-AJMZZA, SW20L-AJMZZK
    Less Info
  • Toyota MR2 Radiator - 16400-16030
    View related parts

    Toyota MR2 Radiator Assembly

    Part Number: 16400-16030
    • Other Name: Radiator Assy; Radiator
    • Replaces: 16400-16020
    More Info
    Fits the following Vehicles:
    • 1985-1987 Toyota MR2 | GT | 4 Cyl 1.6L | 4AGELC; 4AGELC; AW11L-WCMQFA, 4AGELC; AW11L-WCPQFA, AW11L-WCMQFK, AW11L-WCPQFK, AW11L-WJMQFA, AW11L-WJMQFK, AW11L-WJPQFA
    Less Info
  • Toyota MR2 Radiator - 16400-16110
    View related parts

    Toyota MR2 Radiator Assembly

    Part Number: 16400-16110
    • Other Name: Radiator Assy
    • Replaced by: 16400-16120
    More Info
    Fits the following Vehicles:
    • 1986-1989 Toyota MR2 | GT, Super Charger | 4 Cyl 1.6L | 4AGELC, 4AGZE; 4AGELC, 4AGZE; AW11L-WCMQFA, AW11L-WCMQFK, AW11L-WJMQFA, AW11L-WJMQFK, AW11L-WJMQRA, AW11L-WJMQRK
    Less Info
  • Toyota MR2 Radiator - 16400-16120
    View related parts

    Toyota MR2 Radiator Assembly

    Part Number: 16400-16120
    • Other Name: Radiator Assy; Radiator
    • Replaces: 16400-16110
    More Info
    Fits the following Vehicles:
    • 1986-1989 Toyota MR2 | GT, Super Charger | 4 Cyl 1.6L | 4AGELC, 4AGZE; 4AGELC, 4AGZE; AW11L-WCMQFA, 4AGZE; AW11L-WCPQFA, AW11L-WCMQFK, AW11L-WCPQFK, AW11L-WJMQFA, AW11L-WJMQFK, AW11L-WJMQRA, AW11L-WJMQRK, AW11L-WJPQFA, AW11L-WJPQRA
    Less Info

Toyota MR2 Radiator Parts Questions & Answers

  • Q: How to remove and install a radiator?
    A: Drain the coolant. Remove both electric cooling fans. Disconnect the upper and lower radiator hoses. To remove the radiator, use a pair of channel lock pliers to pinch the radiator upper hose clamp and slide it back, then detach the hose from the radiator. Disconnect the lower radiator hose by squeezing the clamp. Disconnect the temperature switch electrical connector from the lower left backside of the radiator. Unplug the electrical connector from the temperature switch located at the lower left backside of the radiator. Remove both upper radiator support bolts and the supports. Remove the radiator retaining bracket bolts and brackets and lift the radiator out of the vehicle. Remove the radiator from the vehicle. Carefully examine the radiator for evidence of leaks and damage. Any necessary repairs should be performed by a radiator repair shop. With the radiator removed, brush accumulations of insects and leaves from the cooling fins. Inspect the radiator hoses. If they have become cracked, swollen or otherwise deteriorated, replace them. Flush the radiator. Replace the radiator cap with a new one of the same rating. If the cap is relatively new, have it pressure tested at a service station. Installation is the reverse of removal. Make sure that the radiator support bracket rubber insulators are properly seated against the top of the radiator. When reinstalling the radiator, make sure that the 3 rubber cushions between the top of the radiator and the brackets are not pinched, the insulators will crack and the radiator will start rubbing against the brackets. If they are pinched when the support bracket bolts are tightened, they will be damaged and will have to be replaced.

Related Toyota MR2 Parts

About Toyota MR2 Radiator

Everything installed in your Toyota MR2 vehicle needs to be kept in good working condition. The online catalog we provide will get you through the ordering process safely and securely. All genuine Toyota Radiator from us are shipped directly from authorized Toyota Dealer. If you want search for MR2 Radiator fast and easily, we assure you that you get to opt for one in less the time.
