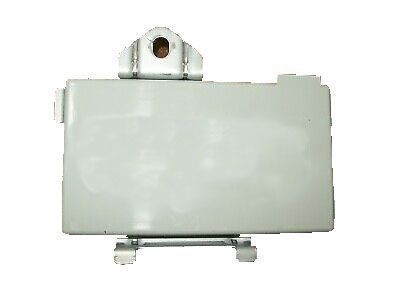

Toyota 86777-76040 Battery, MAYDAY

You can Select Your Vehicle to check if 86777-76040 fits your vehicle.

To remove the battery cover, start by removing the fasteners that secure it and set the cover aside. Next, disconnect the cable from the negative battery terminal followed by the cable from the positive terminal. Remove the battery hold-down clamp and carefully lift out the heavy battery. If replacing the battery, ensure that the new one is identical in terms of dimensions, amperage rating, and cold cranking rating. To install the new battery, simply reverse the removal process, making sure to connect the positive cable first and the negative cable last.

It is important to ensure that the ignition switch is in the Off position before connecting the booster battery. Turn off any lights, heater, and other electrical loads to prevent potential damage. It is also recommended to wear safety goggles to protect your eyes.

After reconnecting the battery, several relearning procedures may need to be performed, such as correcting the steering angle neutral point, power window initialization, sunroof initialization, smart access learning, and power trunk lid operation. These procedures vary depending on the model and year of the vehicle.

Maintenance and charging of the vehicle battery are essential for reliable starts and optimal performance. Before performing any maintenance, ensure you have the necessary equipment and follow precautions. Turn off the engine and accessories, disconnect the negative terminal, and avoid creating sparks or flames near the battery due to the flammable hydrogen gas it produces. Wear protective gear and keep children away. Check for any damage, corrosion, or loose connections on the battery. If corrosion is present, remove the battery for cleaning. Clean the cable clamps and terminals with a solution of warm water and baking soda, taking care not to let the solution enter the battery. Inspect the battery tray and tighten hold-down clamp bolts. Any corroded metal parts should be covered with a zinc-based primer and painted. For charging, it is recommended to remove the battery from the vehicle to prevent damage to the paint. Slow-rate charging with a one or two-amp battery charger is safest and least straining on the battery. Avoid using high amperage chargers or rapid boost charges, as they can damage the battery. The average charging time is 12 to 16 hours for a trickle charger. Remove cell caps (if present), cover the holes, and connect the charger cables to the battery posts. Monitor the battery regularly during charging to prevent overheating. If the battery has removable cell caps, measure the specific gravity with a hydrometer. Sealed batteries may have built-in hydrometers or can be checked with a voltmeter. For more information, consult the relevant sections in the manual.

When disconnecting the battery, it is important to always disconnect the cable from the negative battery terminal first and hook it up last to avoid shorting the battery. Additionally, it is recommended to wait at least 90 seconds after turning off the ignition switch before disconnecting the negative battery cable to allow various systems to record memory and settings. Some systems on the vehicle require continuous battery power, so it is wise to remove the key from the ignition and keep it with you to prevent accidental locking of the power door locks when reconnecting the battery. Memory-savers can be used to maintain power to certain circuits while disconnecting the battery. To disconnect the battery, loosen the cable end bolt and isolate the cable end to prevent accidental contact with the battery terminal. After reconnecting the battery, several relearning procedures may need to be performed, such as correcting the steering angle neutral point, power window initialization, sunroof initialization, smart access learning, and power trunk lid operation. These procedures vary depending on the model and year of the vehicle.

Simply reverse the removal process, making sure to connect the positive cable first and the negative cable last.

To check the battery, start by disconnecting the negative and positive battery cables. Then, visually inspect the battery's state of charge by looking at the indicator eye on the top of the battery. You can also perform an open voltage circuit test using a digital voltmeter to measure the battery's voltage. Make sure to remove the battery's surface charge before taking accurate measurements. To do this, turn on the high beams for ten seconds, then turn them off and let the vehicle stand for two minutes. With the engine and accessories turned off, use the voltmeter to measure the battery voltage, which should be around 12.5 to 12.9 volts. If the voltage is lower, charge the battery before proceeding. Next, perform a battery load test using a load tester. Follow the manufacturer's instructions for the specific tool you are using. The load test will evaluate the battery's ability to operate the starter and other accessories under heavy load. Maintain the load for 15 seconds or less and ensure that the battery voltage does not drop below 9.6 volts. If the battery is weak or defective, the tool will indicate this immediately. To replace the battery, disconnect the negative and positive battery cables, remove the hold-down clamp, and lift out the battery. If there is corrosion on the battery tray, wash it thoroughly in clean water or replace it if it is cracked or damaged. When installing the battery tray, make sure the locator pins are fully seated in their corresponding holes. If you are replacing the battery, make sure to get one that is identical in dimensions, amperage rating, and cold cranking rating. Finally, installation is the reverse of removal.
