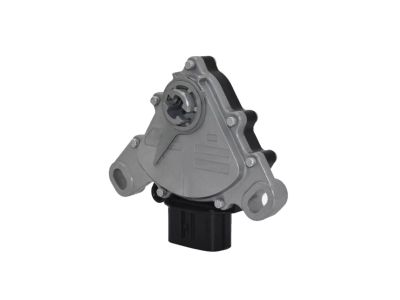

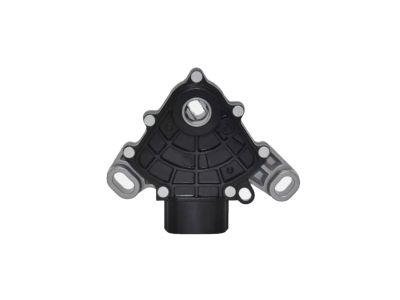

Genuine Toyota Camry Neutral Safety Switch

Toyota Camry Neutral Safety Switch Parts Questions & Answers

• Switch Assy, Clutch Start
  84520-33010
  Q: Why does Toyota continue to refer to the PNP switch instead of using the recommended term TR sensor by SAE on on Toyota Avalon and Toyota Camry?

  A: Even though the Society of Automotive Engineers (SAE) has recommended since 1996 that all manufacturers use the term Neutral Safety Switch instead of Park/Neutral Position (PNP) switch, Toyota continues to refer to it as the PNP switch.
• Switch Assy, Neutral Start
  84540-48010
  Q: How to replace and adjust the Park/Neutral Position switch on Toyota Avalon and Toyota Camry?

  A: The Park/Neutral Position switch controls the Park/Neutral function, backup light switch, and gear position information. It only allows engine start in Park or Neutral. To replace the switch on 2009 and earlier four-cylinder models, raise the vehicle, disconnect the connector, remove the lever retaining nut, lock plate, switch retaining bolts, and the switch. For V6 models and 2010 and later four-cylinder models, remove the engine cover, air filter housing, transaxle cable bracket clip, control cable retaining nut, wiring harness clamp, and connector. Then remove the control shaft lever nut washer and lever, switch retaining bolts, and clean the switch area before removing the switch. To adjust, loosen the bolts, align the switch, and tighten the bolts.
