Genuine Toyota Highlander Drive Shaft

Toyota Highlander Drive Shaft Parts Questions & Answers

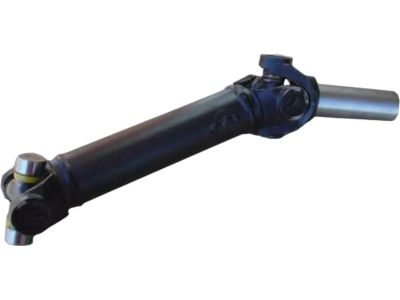

• Propelle Shaft Assembly W/Center Bearing
  37100-48020
  Q: How to check, removal and installation the driveshaft?

  A: To perform checks, first, raise the rear of the vehicle and ensure it's securely supported on jackstands. Look for any dents or cracks in the driveshaft tubing. Check for oil leakage at the connections to the transfer case and Differential. Rotate a rear wheel while inspecting the universal joints for proper operation, without binding, noise, or looseness. Listen for center bearing noise and check its rubber portion. You can also check the universal joints by attempting to twist them by hand or lifting the shaft. Any movement indicates wear. Tighten the driveshaft mounting bolts if needed. For removal and installation, repeat the step of raising and securing the vehicle. Make reference marks on the driveshaft and differential flanges for reinstallation alignment. Remove the rear universal joint bolts, then mark and unbolt the center support bearings. Pull out the front of the driveshaft from the transaxle. Lubricate the transfer case seal, guide the intermediate shaft yoke into the transfer case, and install the mounting bolts through the center support bearing. Reconnect the driveshaft to the pinion flange, align the marks, and tighten the fasteners. Reconnect the center support bearings, align the marks, and tighten the fasteners.
