Genuine Toyota Matrix Brake Caliper
Caliper- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
8 Brake Calipers found
Toyota Matrix Disc Brake Cylinder Assembly Left Hand
Part Number: 47750-02410$195.91 MSRP: $280.92You Save: $85.01 (31%)Ships in 1-3 Business Days
Toyota Matrix Front Disc Brake Cylinder Assembly Right Hand
Part Number: 47730-02400$195.91 MSRP: $280.92You Save: $85.01 (31%)Ships in 1-3 Business Days
Toyota Matrix Front Disc Brake Cylinder Assembly Right Hand
Part Number: 47730-02410$195.91 MSRP: $280.92You Save: $85.01 (31%)Ships in 1-3 Business Days
Toyota Matrix Disc Brake Cylinder Assembly Left Hand
Part Number: 47750-02140$230.25 MSRP: $330.16You Save: $99.91 (31%)Ships in 1-3 Business Days
Toyota Matrix Rear Disc Brake Cylinder Assembly Right Hand
Part Number: 47730-20630$140.86 MSRP: $200.25You Save: $59.39 (30%)Ships in 1-3 Business Days
Toyota Matrix Front Disc Brake Cylinder Assembly Right Hand
Part Number: 47730-02140$230.25 MSRP: $330.16You Save: $99.91 (31%)Ships in 1-3 Business Days
Toyota Matrix Disc Brake Cylinder Assembly Rear Left Hand
Part Number: 47750-20620$140.86 MSRP: $200.25You Save: $59.39 (30%)Ships in 1-2 Business Days
Toyota Matrix Disc Brake Cylinder Assembly Left Hand
Part Number: 47750-02400$192.07 MSRP: $275.41You Save: $83.34 (31%)
Toyota Matrix Brake Caliper

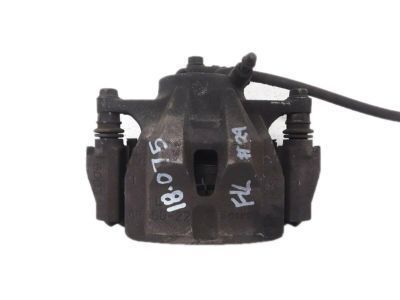

The Toyota Matrix Brake Caliper is a device that converts the hydraulic pressure created in the master cylinder into mechanical force clamping the brake pads against the rotor. This assists in slowing down and stopping the vehicle. Inside the Brake Caliper mounted on each Matrix rotor are sealed cast iron bores housing pistons with a bleeder screw, a hose port, and boots. There are two styles: fixed and floating. Bolt-down fixed calipers attach to the mount and use pistons on both sides of the rotor for even pad pressure. Floating units situate a piston on the inboard side, sliding on pins. On increasing pressure, the piston pushes the pad, which causes the body to shift to grip the rotor. The Toyota design of original equipment pistons is steel or phenolic. A screw-type mechanism is contained within some of the rear calipers that applies the parking brake. The original Brake Caliper must seal properly to hold pressure. When a Brake Caliper leaks or seizes, it can cause pedal softness, pulling, dragging, and uneven wear of the pads. Therefore, every Toyota Matrix needs a Brake Caliper check when symptoms appear to keep the Matrix reliable and maintain Toyota safety.
If you are in demand for superior quality and affordable OEM Toyota Matrix Brake Caliper, then shop with us! We own a wide range of the reduced-priced genuine Toyota Matrix Brake Caliper. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.
Toyota Matrix Brake Caliper Parts Questions & Experts Answers
- Q: How to remove and install a brake caliper on Toyota Matrix?A:Begin by loosening the wheel lug nuts, raising the vehicle, and securely supporting it on jackstands. Remove the wheels. Therefore remove the brake hose banjo bolt and disconnect the hose from the caliper. Thereby Plug this hose to keep contaminants out of the brake system as well as avoid losing more brake fluid than is necessary. After that, remove the caliper mounting bolts. Remove the caliper. Reverse this process as you install the caliper. Also, fix new sealing washers at both sides of the brake hose banjo fitting; they should be found in your rebuild kit. Next time you do this, tighten these caliper mounting bolts in line with torque specifications. If there was any disconnection on hose, bleed it after replacing or removing enough fluid from master cylinder reservoirs. Afterwards install wheels and lug nuts back on it again if needed before lowering down automobile unto ground hence tightening them appropriately as stipulated inside user manual while ensuring equal torquing force across all wheels (including spare tire). While others may require one to remove brake hose banjo bolt and subsequently detach hose from this caliper in order to reach rear disc brake caliper prior to completing other steps required during replacement procces. The next step is to unfasten lug nuts on rear tires so that they can be raised above ground level by use of jacks stands- after which these tires will be removed from their current position. The other action will involve removing a tube with bolt placed at its center coming out braking system that is linked to calipers thereby preventing contamination during maintenance procedures through clogging up internal mechanism by dust particles or rust happening inside metal pipe joints; thus preventing unnecessary loss of additional amounts liquid used especially when dealing with older models' designs having already deteriorated hydraulic lines due time factors like tear within rubber parts among others which require extensive repair work done instead simply replacing affected component such an item might have destroyed almost all brake pads. This is done by loosening the wheel lug nuts first; after that, raise your vehicle and have it supported securely on jackstands. Next, remove the wheels. Take away the brake hose banjo bolt and separate the hose from caliper. Plug this hose to keep contaminants out of the brake system also so as not to lose any more brake fluid than necessary. Remove then caliper mounting bolts. Remove the caliper. Install caliper by reversing removal procedure. Remember to put new sealing washers in both sides of brake hose banjo fitting (they should be included with the rebuild kit). Finally, caliper mounting bolts should be tightened to torque specifications if you want it last longer enough during which case those having been detached must be bled before removing excess liquid from container located under battery cover because their replacements can't be made within such cases hence new ones need fitted while keeping track using similarly designed tools available in market since they're used internationally all over globe so majority garages prefer applying universal standards everywhere including Uganda where there are a lot more different car models being sold than any other place around continent due availability cheap Asian imports. If one wishes to remove rear disc brake caliper, they should unfasten the hose from it by disconnecting its banjo bolt. Then plug this hose so that there are no impurities within braking system or unnecessary loss of additional amounts liquid employed especially as most older makes tend have worn hydraulic lines which may take many days for repairing whole system instead just replacing broken sections such item might have damaged almost all pad assemblies but now has taken even longer time when dealing their corrosion problems rather than simply changing out affected unit like this they would own done already broke almost every ground contact surface. In order to complete this particular job you are supposed to loosen lug nuts on rear tires till they are above ground level by use of jacks stands whence these will be removed altogether eventually .Thereafter, the next thing would involve removing a line with a center bolt sticking out of it that goes to brake cylinder and calipers thereby preventing dirt from entering into them when performing maintenance through blocking internal mechanism due to dust particles or rust which occurs within metal tube fittings; hence avertable loss of more fluid used especially in case of old models which have damaged pipes because they need extensive work instead just replacing worn-out part like this may have been ruined almost every lining.
