How to adjust the shift cable on Toyota Sienna?

When the shift lever inside the vehicle is moved from the Neutral position to other positions, it should move smoothly and accurately, with the shift indicator reflecting the correct gear position. If the indicator is misaligned, adjust the shift cable by raising the vehicle and securely supporting it on jackstands, then removing the splash shields covering the area between the front of the vehicle and the lower crossmember. Loosen the swivel nut on the manual shift lever at the transaxle, place the manual lever in Park, and return it two notches to the Neutral position. Move the shift lever inside the vehicle to Neutral, hold the lever with slight pressure toward the REVERSE position, and tighten the swivel nut securely. Check the operation of the transaxle in each shift lever position, ensuring the starter operates only in Park and Neutral. For replacement, disconnect the cable from the manual lever and remove the large C-clip cable retainer from the bracket above the manual lever. For early models, loosen the large grommet from around the cable housing at the firewall, remove the steering column upper and lower covers, take out the driver's knee bolster and the reinforcement panel behind it, remove the retaining clip, pull out the clevis pin, and disconnect the cable from the shift lever. For later models, remove the instrument cluster panel for access to the upper end of the cable, detach the secondary cable guide bracket, remove the two nuts securing the cable to the firewall, and use a screwdriver to pry the cable end off the shift lever while detaching the cable outer housing from the shift lever bracket. For all models, pull the cable through the firewall, install in reverse order of removal, and ensure to adjust the cable at the transaxle end upon completion.

Genuine Toyota Sienna Shift Cable

Transmission Shift Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Shift Cables found

View related parts
Toyota Sienna Cable Assy, Transmission Control
Part Number: 33820-08010
$175.15 MSRP: $251.14
You Save: $75.99 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assy, Transmission Control (For Column Shift)
- Comment: (FOR COLUMN SHIFT)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Cable Assembly, TRANSMIS
Part Number: 33820-08050
$165.08 MSRP: $234.69
You Save: $69.61 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Cable Assy, Transmission Control; Shift Cable
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2020 Toyota Sienna | LE, SE, STD, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Cable Assembly, TRANSMIS
Part Number: 33820-08070
$187.10 MSRP: $268.28
You Save: $81.18 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Shift Control Cable
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts
Toyota Sienna Cable Assembly, Parking Lock
Part Number: 33880-08010
Product Specifications
- Other Name: Cable Assy, Parking Lock (For Column Shift); Cable Assembly
- Comment: (FOR COLUMN SHIFT)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Cable Assy, Transmission Control
Part Number: 33820-08020
Product Specifications
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Cable Assembly, TRANSMIS
Part Number: 33820-08040
$180.48 MSRP: $258.80
You Save: $78.32 (31%)
Product Specifications
- Other Name: Cable Assy, Transmission Control; Shift Cable
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2014 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL33L-SBTDKA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA
View related parts

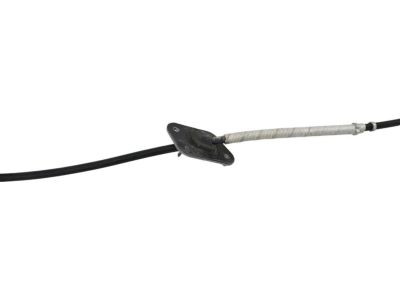

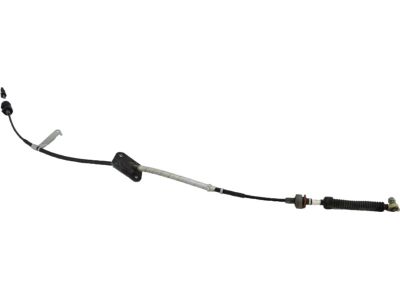

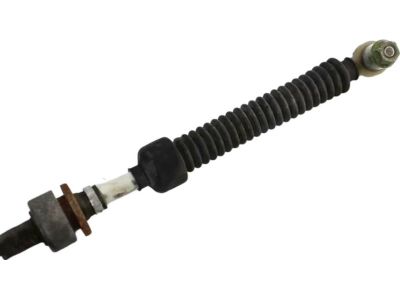

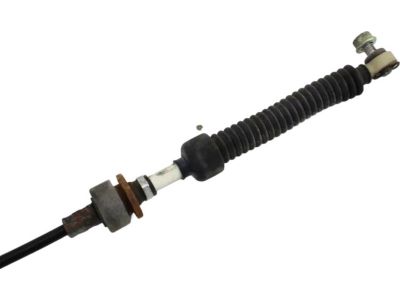

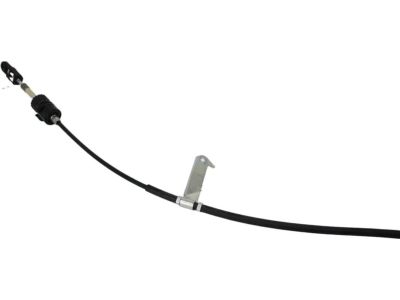

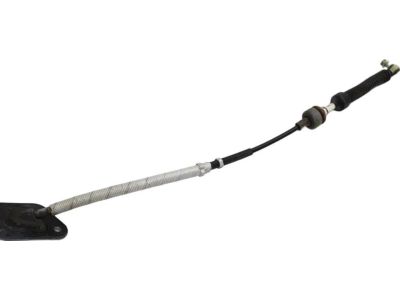

Toyota Sienna Cable Assembly, TRANSMIS
Part Number: 33820-08030
$165.08 MSRP: $234.69
You Save: $69.61 (30%)
Product Specifications
- Other Name: Cable Assy, Transmission Control; Shift Cable
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2017 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA

Toyota Sienna Shift Cable

If you are in demand for superior quality and affordable OEM Toyota Sienna Shift Cable, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Shift Cable. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Shift Cable Parts Questions & Experts Answers

Cable Assy, Transmission Control
33820-08010
Q: How to adjust the shift cable on Toyota Sienna?
A:
When the shift lever inside the vehicle is moved from the Neutral position to other positions, it should move smoothly and accurately, with the shift indicator reflecting the correct gear position. If the indicator is misaligned, adjust the shift cable by raising the vehicle and securely supporting it on jackstands, then removing the splash shields covering the area between the front of the vehicle and the lower crossmember. Loosen the swivel nut on the manual shift lever at the transaxle, place the manual lever in Park, and return it two notches to the Neutral position. Move the shift lever inside the vehicle to Neutral, hold the lever with slight pressure toward the REVERSE position, and tighten the swivel nut securely. Check the operation of the transaxle in each shift lever position, ensuring the starter operates only in Park and Neutral. For replacement, disconnect the cable from the manual lever and remove the large C-clip cable retainer from the bracket above the manual lever. For early models, loosen the large grommet from around the cable housing at the firewall, remove the steering column upper and lower covers, take out the driver's knee bolster and the reinforcement panel behind it, remove the retaining clip, pull out the clevis pin, and disconnect the cable from the shift lever. For later models, remove the instrument cluster panel for access to the upper end of the cable, detach the secondary cable guide bracket, remove the two nuts securing the cable to the firewall, and use a screwdriver to pry the cable end off the shift lever while detaching the cable outer housing from the shift lever bracket. For all models, pull the cable through the firewall, install in reverse order of removal, and ensure to adjust the cable at the transaxle end upon completion.
