How to remove and install leaf springs and Leaf Spring Shackle on Toyota T100?

Raise the rear of the vehicle and support it securely on jackstands, blocking the front wheels to prevent rolling. Use a floor jack to support the axle, lifting it just enough to relieve tension on the leaf springs. Remove the four U-bolt nuts and washers to detach the spring from the axle, followed by the spring seat and U-bolts. Next, detach the front end of the spring from the frame by removing the nut from the hanger pin bolt. For the rear end, remove the shackle pin nuts, washers, and shackle pin, then lower the rear of the spring to the ground. After that, take out the hanger pin bolt and remove the spring assembly from the vehicle. If the bushings at the ends of the spring are worn or deteriorated, an automotive machine shop or dealer service department can press out the old ones and press in new ones. For installation, reverse the removal process, gradually tightening the U-bolt nuts in a crisscross pattern to the specified torque, and ensure the hanger pin and shackle pin bolts/nuts are also tightened to the torque with the vehicle at normal ride height.

Genuine Toyota T100 Leaf Spring Shackle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Leaf Spring Shackles found

View related parts
Toyota T100 Shackle Kit, Rear Spring
Part Number: 04483-34020
Product Specifications
- Other Name: Shackle
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1996 Toyota T100 | DLX, SR5, STD | 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L | 3RZFE, 3VZE, 5VZFE; RCK10L-TRMRKA, RCK10L-TRSRKA, VCK10L-THMREA, VCK10L-THSREA, VCK10L-TRMREA, VCK10L-TRMREK, VCK10L-TRMSEA, VCK10L-TRMSEK, VCK10L-TRSREA, VCK10L-TRSREK, VCK10L-TRSSEA, VCK10L-TRSSEK, VCK11L-CRMDKA, VCK11L-CRMDKK, VCK11L-CRMSKA, VCK11L-CRSDKA, VCK11L-CRSDKK, VCK11L-CRSSKA, VCK11L-THMDKA, VCK11L-THSDKA, VCK11L-TRMDKA, VCK11L-TRMDKK, VCK11L-TRMRKA, VCK11L-TRMSKA, VCK11L-TRSDKA, VCK11L-TRSDKK, VCK11L-TRSSKA, VCK20L-TRMREA, VCK20L-TRMREK, VCK20L-TRMSEA, VCK20L-TRMSEK, VCK20L-TRSREA, VCK20L-TRSREK, VCK20L-TRSSEA, VCK20L-TRSSEK, VCK21L-CRMDKA, VCK21L-CRMDKK, VCK21L-CRMSKA, VCK21L-CRMSKK, VCK21L-CRSDKA, VCK21L-CRSDKK, VCK21L-CRSSKA, VCK21L-CRSSKK, VCK21L-TRMDKA, VCK21L-TRMDKK, VCK21L-TRMSKA, VCK21L-TRMSKK, VCK21L-TRSDKA, VCK21L-TRSDKK, VCK21L-TRSSKA, VCK21L-TRSSKK
View related parts
Toyota T100 Shackle Kit, Rear Spring
Part Number: 04483-34010
Product Specifications
- Other Name: Shackle

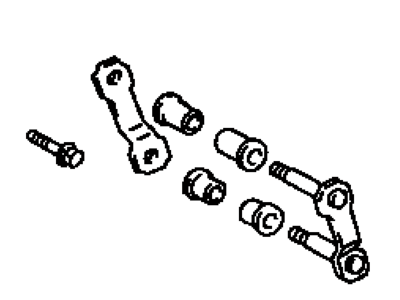

- Manufacturer Note: TYPE A:REFER TO ILLUSTRATION
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1998 Toyota T100 | DLX, SR5, STD | 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L | 3RZFE, 3VZE, 5VZFE; RCK10L-TRMRKA, RCK10L-TRSRKA, VCK10L-THMREA, VCK10L-THSREA, VCK10L-TRMREA, VCK10L-TRMREK, VCK10L-TRMSEA, VCK10L-TRMSEK, VCK10L-TRSREA, VCK10L-TRSREK, VCK10L-TRSSEA, VCK10L-TRSSEK, VCK11L-CRMDKA, VCK11L-CRMDKK, VCK11L-CRMSKA, VCK11L-CRSDKA, VCK11L-CRSDKK, VCK11L-CRSSKA, VCK11L-THMDKA, VCK11L-THSDKA, VCK11L-TRMDKA, VCK11L-TRMDKK, VCK11L-TRMRKA, VCK11L-TRMSKA, VCK11L-TRSDKA, VCK11L-TRSDKK, VCK11L-TRSSKA, VCK20L-TRMREA, VCK20L-TRMREK, VCK20L-TRMSEA, VCK20L-TRMSEK, VCK20L-TRSREA, VCK20L-TRSREK, VCK20L-TRSSEA, VCK20L-TRSSEK, VCK21L-CRMDKA, VCK21L-CRMDKK, VCK21L-CRMSKA, VCK21L-CRMSKK, VCK21L-CRSDKA, VCK21L-CRSDKK, VCK21L-CRSSKA, VCK21L-CRSSKK, VCK21L-TRMDKA, VCK21L-TRMDKK, VCK21L-TRMSKA, VCK21L-TRMSKK, VCK21L-TRSDKA, VCK21L-TRSDKK, VCK21L-TRSSKA, VCK21L-TRSSKK

Toyota T100 Leaf Spring Shackle

If you are in demand for superior quality and affordable OEM Toyota T100 Leaf Spring Shackle, then shop with us! We own a wide range of the reduced-priced genuine Toyota T100 Leaf Spring Shackle. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota T100 Leaf Spring Shackle Parts Questions & Experts Answers

Shackle Kit, Rear Spring
04483-34010
Q: How to remove and install leaf springs and Leaf Spring Shackle on Toyota T100?
A:
Raise the rear of the vehicle and support it securely on jackstands, blocking the front wheels to prevent rolling. Use a floor jack to support the axle, lifting it just enough to relieve tension on the leaf springs. Remove the four U-bolt nuts and washers to detach the spring from the axle, followed by the spring seat and U-bolts. Next, detach the front end of the spring from the frame by removing the nut from the hanger pin bolt. For the rear end, remove the shackle pin nuts, washers, and shackle pin, then lower the rear of the spring to the ground. After that, take out the hanger pin bolt and remove the spring assembly from the vehicle. If the bushings at the ends of the spring are worn or deteriorated, an automotive machine shop or dealer service department can press out the old ones and press in new ones. For installation, reverse the removal process, gradually tightening the U-bolt nuts in a crisscross pattern to the specified torque, and ensure the hanger pin and shackle pin bolts/nuts are also tightened to the torque with the vehicle at normal ride height.
