How to remove and install a radiator on 2003 through 2009 Toyota 4Runner?

Disconnect the cable from the negative terminal of the battery. Drain the coolant into a container. Remove the radiator support shield and the fasteners securing it. Detach the upper and lower radiator hoses from the radiator. If the hoses stick, twist them with a pair of large pliers to break the bond, but be careful not to damage the fittings on the radiator. Remove the coolant reservoir. Remove the cooling fan and fan shroud. If equipped, disconnect the transmission cooler hoses. Place a drip pan to catch the fluid and cap the ends. Remove the radiator mounting bolts. The lower radiator mounting bolts are accessed through openings in the frame structure at the front of the vehicle right side. It may be necessary to use a back-up wrench on the nut inside the engine compartment. Lift out the radiator carefully to avoid damaging the aluminum cooling fins. Beware of dripping fluids and the sharp fins. With the radiator removed, it can be inspected for leaks, damage and internal blockage. If in need of repairs, have a radiator shop or dealer service department perform the work as special techniques are required. Bugs and dirt can be cleaned from the radiator with compressed air and a soft brush. Don't bend the cooling fins as this is done. Installation is the reverse of the removal procedure. Tighten the radiator mounting bolts to the torque. After installation, fill the cooling system. Start the engine and check for leaks. Allow the engine to reach normal operating temperature, indicated by both radiator hoses becoming hot. Recheck the coolant level and add more if required. Check and add transmission fluid as needed.

How to remove and install a radiator and coolant reservoir on 1996 through 2002 Toyota 4Runner?

Disconnect the negative battery cable. Caution: If the stereo in your vehicle is equipped with an anti-theft system, make sure you have the correct activation code before disconnecting the battery. Drain the coolant into a container. Detach the upper and lower radiator hoses from the radiator. If the hoses stick, twist them with a pair of large pliers to break the bond, but be careful not to damage the fittings on the radiator. Disconnect the reservoir hose from the radiator filler neck. Disconnect the air pipe from the top of the radiator. Remove the cooling fan and fan shroud. If equipped with an automatic transmission, disconnect the cooler lines from the radiator. Place a drip pan to catch the fluid and cap the fittings. Remove the battery and the battery tray if it will interfere with removal of the radiator. Remove the radiator grille. Remove the radiator mounting bolts. Lift out the radiator. Be aware of dripping fluids and the sharp fins. With the radiator removed, it can be inspected for leaks, damage and internal blockage. If in need of repairs, have a radiator shop or dealer service department perform the work as special techniques are required. Bugs and dirt can be cleaned from the radiator with compressed air and a soft brush. Don't bend the cooling fins as this is done. Installation is the reverse of the removal procedure. After installation, fill the cooling system with the proper mixture of antifreeze and water. Start the engine and check for leaks. Allow the engine to reach normal operating temperature, indicated by both radiator hoses becoming hot. Recheck the coolant level and add more if required. On automatic transmission equipped models, check and add fluid as needed. On most models, the coolant reservoir simply pulls up and out of the bracket next to the battery. Pour the coolant into a container. Wash out and inspect the reservoir for cracks and chafing. Replace it if damaged. Installation is the reverse of removal.

Genuine Toyota 4Runner Radiator

Cooling Radiator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

70 Radiators found

View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-75181
$358.59 MSRP: $527.85
You Save: $169.26 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2002 Toyota 4Runner | LULI, SR5B, SR5V | 6 Cyl 3.4L | 5VZFE; 5VZFE; VZN180L-GKPGKA, VZN180L-GKPSKA, VZN180L-GKPZKA, VZN185L-GKMGKA, VZN185L-GKPGKA, VZN185L-GKPSKA, VZN185L-GKPZKA
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-31351
$300.12 MSRP: $430.34
You Save: $130.22 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-31354
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2009 Toyota 4Runner | Limited, SR5 | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN210L-GKAGKA, GRN210L-GKAZKA, GRN215L-GKAGKA, GRN215L-GKAZKA
View related parts

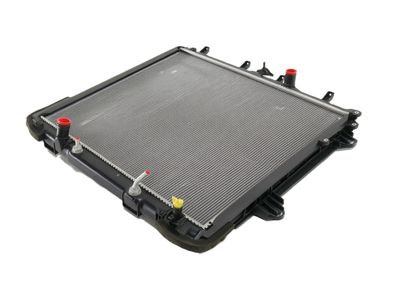

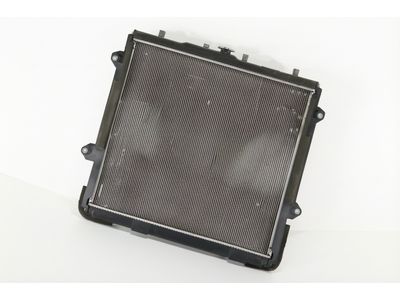

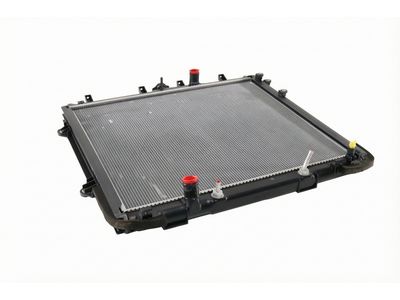

Toyota 4Runner Radiator Assy
Part Number: 16400-31B70
$303.21 MSRP: $434.78
You Save: $131.57 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator, Radiator Assembly
- Replaces: 16400-31712, 16400-31710, 16400-31711, 16400-31713
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2022 Toyota 4Runner | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN280L-GKAGKA, GRN285L-GKAGKA
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-50300
$506.83 MSRP: $746.05
You Save: $239.22 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2009 Toyota 4Runner | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UZN210L-GKAGKA, UZN210L-GKAZKA, UZN215L-GKAGKA, UZN215L-GKAZKA
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-31350
$490.96 MSRP: $722.70
You Save: $231.74 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2005 Toyota 4Runner | Limited, SR5 | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN210L-GKAGKA, GRN210L-GKAZKA, GRN210L-GKPGKA, GRN210L-GKPZKA, GRN215L-GKAGKA, GRN215L-GKAZKA, GRN215L-GKPGKA, GRN215L-GKPZKA
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-31713
$303.21 MSRP: $434.78
You Save: $131.57 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-31B70
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2021 Toyota 4Runner | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN280L-GKAGKA, GRN285L-GKAGKA
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-75441
$300.31 MSRP: $430.64
You Save: $130.33 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-75442
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2012 Toyota 4Runner | 4 Cyl 2.7L | 2TRFE; 2TRFE; TRN280L-GKPGKA, TRN285L-GKPGKA
View related parts

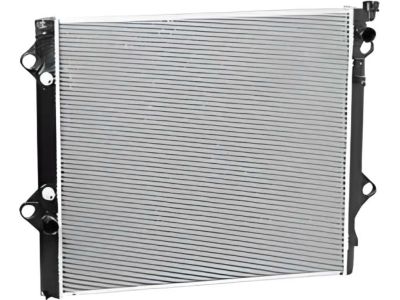

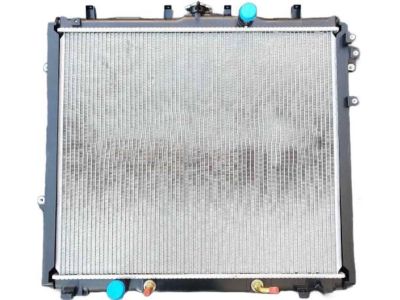

Toyota 4Runner Radiator Assembly
Part Number: 16400-31711
$303.21 MSRP: $434.78
You Save: $131.57 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-31B70
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2015 Toyota 4Runner | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN280L-GKAGKA, GRN285L-GKAGKA
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-08050
$414.42 MSRP: $610.01
You Save: $195.59 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: HARISON TOSHIBA
- Replaced by: 16400-35380
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1995 Toyota 4Runner | DLX | 4 Cyl 2.4L | 22RE; 22RE; RN101L-TRPDEAB
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16410-35120
$382.21 MSRP: $562.61
You Save: $180.40 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: W/O CAP
- Replaced by: 16400-35150
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1985 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4L | 22R; 22R; RN60LG-MDA, RN60LG-MSA, RN60LV-MDA, RN60LV-MSK
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-31710
$303.21 MSRP: $434.78
You Save: $131.57 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-31B70
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota 4Runner | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN280L-GKAGKA, GRN285L-GKAGKA
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-54420
$361.83 MSRP: $532.61
You Save: $170.78 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota 4Runner | DLX | 4 Cyl 2.4L | 2LT; 2LT; LN56L-MDCXA3, LN56L-MDXA3
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-35300
$412.03 MSRP: $606.50
You Save: $194.47 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: W/CAP
- Replaced by: 16400-35390
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1989 Toyota 4Runner | SR5 Turbo | 4 Cyl 2.4L | 22RTEC; 22RTEC; RN55L-MGCZA, RN55L-MGCZA3, RN55L-MSCZA, RN55L-MSCZA3
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-65080
$477.88 MSRP: $703.43
You Save: $225.55 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy; Radiator
- Replaces: 16400-65090, 16400-65030, 16400-65050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1989-1995 Toyota 4Runner | DLX, SR5, STD | 6 Cyl 3.0L | 3VZE; 3VZE; VZN85L-THMDEA, 3VZE; VZN85L-THSDEA, 3VZE; VZN95L-TWSREA6, VZN85L-THMDEA3, VZN85L-THSDEA3, VZN85L-TRMDEA, VZN85L-TRMDEA3, VZN85L-TRMDEK, VZN85L-TRMREA6, VZN85L-TRSDEA, VZN85L-TRSDEA3, VZN85L-TRSDEK, VZN85L-TRSREA6, VZN85L-TWMREA6, VZN85L-TWSREA6, VZN90L-CRMDEA, VZN90L-CRMDEA3, VZN90L-CRMDEK, VZN90L-CRMGEA, VZN90L-CRMGEA3, VZN90L-CRMGEK, VZN90L-CRPGEA, VZN90L-CRPGEA3, VZN90L-CRSDEA, VZN90L-CRSDEA3, VZN90L-CRSDEK, VZN95L-TWMREA6, VZN95L-TWSREA6, VZN95L-TWSREK6
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-65041
$493.01 MSRP: $725.71
You Save: $232.70 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-65070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1992 Toyota 4Runner | DLX, SR5 | 6 Cyl 3.0L | 3VZE; 3VZE; VZN100L-TRMDEA, VZN100L-TRMDEK, VZN100L-TRMGEA, VZN105L-TRMDEA, VZN105L-TRMDEK, VZN110L-CRMDEA, VZN110L-CRMDEK, VZN110L-CRMGEA, VZN110L-CRMGEK, VZN130L-GJMGEA, VZN130L-GKMGEA, VZN131L-RJMGEK, VZN131L-RKMGEK
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-65061
$493.01 MSRP: $725.71
You Save: $232.70 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-65070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1990-1992 Toyota 4Runner | DLX, SR5 | 6 Cyl 3.0L | 3VZE; 3VZE; VZN105L-TRPDEA, VZN110L-CRPDEA, VZN110L-CRPDEK, VZN110L-CRPGEA, VZN120L-GKPGEA, VZN130L-GJPGEA, VZN130L-GKPGEA, VZN131L-RJPGEK, VZN131L-RKPGEK
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-08020
$285.44 MSRP: $409.30
You Save: $123.86 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: HARISON TOSHIBA
- Replaced by: 16400-35350
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1995 Toyota 4Runner | DLX | 4 Cyl 2.4L | 22RE; 22RE; RN101L-TRLDEAB, RN101L-TRMDEAB, RN110L-CRMDEAB
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-35270
$298.49 MSRP: $428.02
You Save: $129.53 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: W/CAP
- Replaced by: 16400-35360
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota 4Runner | DLX, SR5 | 4 Cyl 2.4L | 22REC; 22REC; RN55L-PDEA3W, RN55L-PDEK3W, RN55L-PSCEA, RN55L-PSCEA3, RN55L-PSCEK, RN55L-PSEA3
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-35200
Product Specifications
- Other Name: Radiator Assy
- Manufacturer Note: W/CAP
- Replaced by: 16400-35350
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota 4Runner | DLX, SR5, STD | 4 Cyl 2.4L | 22R, 22REC; 22R, 22REC; RN50L-MSEA, RN50L-MSEA3, RN55L-KDEA3W, RN55L-KDEK3W, RN55L-KREA3W, RN55L-KRTEA3W, RN55L-MRHEA, RN55L-MRHEK, RN55L-MSCEA, RN55L-MSCEA3, RN55L-MSCEK, RN55L-MSEA, RN55L-MSEA3, RN55L-MSEK, RN60LG-MDA, RN60LG-MSA, RN60L-MDK, RN60L-MRA, RN60L-MRA3, RN60L-MSA, RN60L-MSA3, RN60L-MSEA, RN60L-MSEA3, RN60LV-MDA, RN60LV-MSK, RN61L-MDK, RN61L-MRA, RN61L-MRA3, RN61L-MSEA, RN61L-MSEA3, RN65L-MDA, RN65L-MDA3, RN65L-MDCA, RN65L-MDCA3, RN65L-MDK, RN65L-MSA3, RN65L-MSCA, RN65L-MSCA3, RN65L-MSCEA, RN65L-MSCEA3, RN65L-MSCEK, RN65L-MSCK, RN65L-MSEA3, RN65L-MSEK, RN65L-MSK, RN66L-MDA, RN66L-MDA3, RN66L-MDCA, RN66L-MDCA3, RN66L-MDK, RN66L-MSCEA, RN66L-MSCEA3, RN66L-MSCEK, RN66L-MSEA3, RN66L-MSEK
View related parts
Toyota 4Runner Radiator Assembly
Part Number: 16400-35220
Product Specifications
- Other Name: Radiator Assy
- Replaced by: 16400-35370
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1984-1986 Toyota 4Runner | DLX, SR5, STD | 4 Cyl 2.4L | 22REC; 22REC; RN55L-MRHEA, RN55L-MRHEK, RN55L-SRHEA, RN55L-SRHEK, RN60LG-MDEA, RN60LG-MSEA, RN60LV-MDEA, RN60LV-MSEK

| Page 1 of 4 |Next >

1-20 of 70 Results

Toyota 4Runner Radiator

Toyota 4Runner Radiator is an important Automotive part that plays key roll in managing the temperature range in 4Runner's engine. Several problems can occur to the radiator; they include leaking, head gasket failure, and problems related to engine overheating, which are eventually fatal to the vehicle performance level. Some of the potentially clear symptoms of a faulty radiator in the 4Runner include; the pink or strawberry milk shake like liquid dripping from the engine or radiator, head gasket problems, and slow engine performance. Such problems can be avoided; however, certain preventive measures are recommended such as periodic flushing of the fluids, cleaning the reservoir tank of the radiator and adding an external transmission cooler. By doing so, drivers would be able to protect the 4Runner's engine cooling system and the car consequently, from unforeseen damages in future.

If you are in demand for superior quality and affordable OEM Toyota 4Runner Radiator, then shop with us! We own a wide range of the reduced-priced genuine Toyota 4Runner Radiator. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota 4Runner Radiator Parts Questions & Experts Answers

Radiator Assembly
16400-31350
Q: How to remove and install a radiator on 2003 through 2009 Toyota 4Runner?
A: Disconnect the cable from the negative terminal of the battery. Drain the coolant into a container. Remove the radiator support shield and the fasteners securing it. Detach the upper and lower radiator hoses from the radiator. If the hoses stick, twist them with a pair of large pliers to break the bond, but be careful not to damage the fittings on the radiator. Remove the Coolant Reservoir. Remove the cooling fan and fan shroud. If equipped, disconnect the transmission cooler hoses. Place a drip pan to catch the fluid and cap the ends. Remove the radiator mounting bolts. The lower radiator mounting bolts are accessed through openings in the frame structure at the front of the vehicle right side. It may be necessary to use a back-up wrench on the nut inside the engine compartment. Lift out the radiator carefully to avoid damaging the aluminum cooling fins. Beware of dripping fluids and the sharp fins. With the radiator removed, it can be inspected for leaks, damage and internal blockage. If in need of repairs, have a radiator shop or dealer service department perform the work as special techniques are required. Bugs and dirt can be cleaned from the radiator with compressed air and a soft brush. Don't bend the cooling fins as this is done. Installation is the reverse of the removal procedure. Tighten the radiator mounting bolts to the torque. After installation, fill the cooling system. Start the engine and check for leaks. Allow the engine to reach normal operating temperature, indicated by both radiator hoses becoming hot. Recheck the coolant level and add more if required. Check and add transmission fluid as needed.
Radiator Assembly
16400-75181
Q: How to remove and install a radiator and coolant reservoir on 1996 through 2002 Toyota 4Runner?
A: Disconnect the negative battery cable. Caution: If the stereo in your vehicle is equipped with an anti-theft system, make sure you have the correct activation code before disconnecting the battery. Drain the coolant into a container. Detach the upper and lower radiator hoses from the radiator. If the hoses stick, twist them with a pair of large pliers to break the bond, but be careful not to damage the fittings on the radiator. Disconnect the reservoir hose from the radiator filler neck. Disconnect the air pipe from the top of the radiator. Remove the cooling fan and fan shroud. If equipped with an automatic transmission, disconnect the cooler lines from the radiator. Place a drip pan to catch the fluid and cap the fittings. Remove the battery and the battery tray if it will interfere with removal of the radiator. Remove the radiator grille. Remove the radiator mounting bolts. Lift out the radiator. Be aware of dripping fluids and the sharp fins. With the radiator removed, it can be inspected for leaks, damage and internal blockage. If in need of repairs, have a radiator shop or dealer service department perform the work as special techniques are required. Bugs and dirt can be cleaned from the radiator with compressed air and a soft brush. Don't bend the cooling fins as this is done. Installation is the reverse of the removal procedure. After installation, fill the cooling system with the proper mixture of antifreeze and water. Start the engine and check for leaks. Allow the engine to reach normal operating temperature, indicated by both radiator hoses becoming hot. Recheck the coolant level and add more if required. On automatic transmission equipped models, check and add fluid as needed. On most models, the coolant reservoir simply pulls up and out of the bracket next to the battery. Pour the coolant into a container. Wash out and inspect the reservoir for cracks and chafing. Replace it if damaged. Installation is the reverse of removal.
