How to check the wiper motor circuit on Toyota Highlander?

Check both your battery voltage and its health to see if the wipers are slow. Make sure the battery works well. Clean, fix, and add lubricant to the linkage and pivots once you've taken the motor out and asked the arms to move by hand. Then put the motor back into place. Look again at your wiring, starting with the ground connection, and then consider replacing the motor if everything else looks good. When you hit the wiper switch and the wipers stay off, look in the driver side fuse panel to see if the wiper fuse is blown. If it's good, try your own connection between the wiper ground terminal and ground; check to see if that helps the wipers work. When the motor won't work, look if a bad ground is causing the issue. Then, check for electrical supply to the motor while switching the wiper to highest speed, easily reached by taking off the cowl cover to access the electrical parts. Pull the wiper motor from the car, then use a wire from the battery, through a fuse, to test its operation away from the vehicle. When the motor runs, look into stuck linkage; reinstall it if necessary. When there's no voltage to the motor, begin by checking if voltage is flowing through the wiper control relays; if voltage is present at those relays but not at the motor, ask a mechanic to test your wiper switch for faults. When the switch works fine, most likely the wiper control relay is the issue. When the wipers won't run the correct time, check if all wires between the switch and motor control are working. Before closing the wiper switch, check the park feed wire of the wiper motor connector to see if it has voltage while the ignition is on. You should also test for an open circuit past the motor and into the fuse panel if no voltage is found. To get to the wiper motor, start by unlocking the trim panels covering the wiper arm wing nuts. Then loosen and remove those wing nuts from the wiper arms and note the positioning of each arm with the shaft before moving on. Uncover the plastic cowl protecting fresh air, pull the electrical cable of the wiper motor from its socket, and undo the mounting screw holding the wiper motor and link assembly together. Push the assembly to the right, removing the rubber insulation from locking it to a curved attachment. Unbolt the motor linkage rod at the crank arm's base, unscrew the crank arm bolt, indicate the crank arm's connection to the motor shaft, then take off the crank arm. Unbolt the wiper motor link rod from the wiper arm, pulling the whole motor and rod apart. To put it back in, just reverse these steps. To take off the rear wiper arm's motor, open the cap above it, unscrew the arm's holding bolt, write down how the arm fits on the motor shaft, and pull the arm off. To get to the rear wiper motor, you first must remove the trim panel from the back hatch door, disconnect the electrical power to the motor, take the rear wiper motor bolts off, and then you can safely detach the motor itself. Putting it all back together just follows the steps in reverse order.

Genuine Toyota Highlander Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Wiper Motors found

View related parts
Toyota Highlander Motor Assembly, Rear WIPER
Part Number: 85130-0E080
$114.33 MSRP: $161.17
You Save: $46.84 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Rear Wiper; Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS, 2GRFXE, 2GRFXS; ASU50L-ARTNKA, GSU50L-ARTGKA, GSU50L-ARTMKA, GSU50L-ARTNKA, GSU50L-ARZGHA, GSU50L-ARZMHA, GSU50L-ARZNHA, GSU55L-ARTGKA, GSU55L-ARTMKA, GSU55L-ARTNKA, GSU55L-ARZGHA, GSU55L-ARZMHA, GSU55L-ARZNHA, GVU58L-ARXGHA, GVU58L-ARXGKA, GVU58L-ARXMHA, GVU58L-ARXMKA, GVU58L-ARXNHA, GVU58L-ARXNKA
View related parts
Toyota Highlander Motor Assembly, Front WIPER
Part Number: 85110-0E060
$148.11 MSRP: $210.57
You Save: $62.46 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Windshield Wiper; Front Motor, Wiper Motor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS, 2GRFXE, 2GRFXS; ASU50L-ARTNKA, GSU50L-ARTGKA, GSU50L-ARTMKA, GSU50L-ARTNKA, GSU50L-ARZGHA, GSU50L-ARZMHA, GSU50L-ARZNHA, GSU55L-ARTGKA, GSU55L-ARTMKA, GSU55L-ARTNKA, GSU55L-ARZGHA, GSU55L-ARZMHA, GSU55L-ARZNHA, GVU58L-ARXGHA, GVU58L-ARXGKA, GVU58L-ARXMHA, GVU58L-ARXMKA, GVU58L-ARXNHA, GVU58L-ARXNKA
View related parts
Toyota Highlander Motor Assy, Rear Wiper
Part Number: 85130-48040
$160.16 MSRP: $227.70
You Save: $67.54 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 85130-0E051
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Grande, Limited, Sport, STD | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFXE, 3MZFE; ASU40L-BRTNKA, GSU40L-BRAGKA, GSU40L-BRAMKA, GSU40L-BRANKA, GSU40L-BRASKA, GSU45L-BRAGKA, GSU45L-BRAMKA, GSU45L-BRANKA, GSU45L-BRASKA, GVU48L-BRXGKA, GVU48L-BRXNKA, MHU48L-BRXMKA, MHU48L-BRXNKA
View related parts
Toyota Highlander Motor Assembly, Rear WIPER
Part Number: 85130-0E051
$160.16 MSRP: $227.70
You Save: $67.54 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Rear Wiper; Rear Motor, Wiper Motor
- Manufacturer Note: BACK GLASS-WITH(GLASS HATCH-BACK DOOR)
- Position: Rear
- Replaces: 85130-0E050, 85130-48040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Grande, Limited, Medium, STD, Sport | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFE; ASU40L-ARTNKA, 2GRFXE, 3MZFE; ASU40L-BRTNKA, GSU40L-ARAGKA, GSU40L-ARAMKA, GSU40L-ARANKA, GSU40L-ARASKA, GSU40L-BRAGKA, GSU40L-BRAMKA, GSU40L-BRANKA, GSU40L-BRASKA, GSU45L-ARAGKA, GSU45L-ARAMKA, GSU45L-ARANKA, GSU45L-ARASKA, GSU45L-BRAGKA, GSU45L-BRAMKA, GSU45L-BRANKA, GSU45L-BRASKA, GVU48L-BRXGKA, GVU48L-BRXNKA, MHU48L-BRXMKA, MHU48L-BRXNKA
View related parts
Toyota Highlander Motor Assembly, Front WIPER
Part Number: 85110-0E050
$183.27 MSRP: $262.80
You Save: $79.53 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Windshield Wiper; Front Motor, Wiper Motor
- Position: Front
- Replaces: 85110-50160
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Grande, Limited, Medium, STD, Sport | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFE; ASU40L-ARTNKA, 2GRFXE, 3MZFE; ASU40L-BRTNKA, GSU40L-ARAGKA, GSU40L-ARAMKA, GSU40L-ARANKA, GSU40L-ARASKA, GSU40L-BRAGKA, GSU40L-BRAMKA, GSU40L-BRANKA, GSU40L-BRASKA, GSU45L-ARAGKA, GSU45L-ARAMKA, GSU45L-ARANKA, GSU45L-ARASKA, GSU45L-BRAGKA, GSU45L-BRAMKA, GSU45L-BRANKA, GSU45L-BRASKA, GVU48L-BRXGKA, GVU48L-BRXNKA, MHU48L-BRXMKA, MHU48L-BRXNKA
View related parts
Toyota Highlander Motor Assembly, Rear WIPER
Part Number: 85130-0E050
$160.16 MSRP: $227.70
You Save: $67.54 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Rear Wiper
- Position: Rear
- Replaced by: 85130-0E051
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Limited, Medium, Sport, STD | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE; ASU40L-ARTNKA, GSU40L-ARAGKA, GSU40L-ARAMKA, GSU40L-ARANKA, GSU40L-ARASKA, GSU45L-ARAGKA, GSU45L-ARAMKA, GSU45L-ARANKA, GSU45L-ARASKA
View related parts
Toyota Highlander Motor Assembly, Rear WIPER
Part Number: 85130-0E060
$147.06 MSRP: $209.07
You Save: $62.01 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Rear Wiper; Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Limited, Medium, Sport, STD | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE; ASU40L-ARTNKA, GSU40L-ARAGKA, GSU40L-ARAMKA, GSU40L-ARANKA, GSU40L-ARASKA, GSU45L-ARAGKA, GSU45L-ARAMKA, GSU45L-ARANKA, GSU45L-ARASKA
View related parts
Toyota Highlander Motor Assy, Windshield Wiper
Part Number: 85110-48070
$198.93 MSRP: $285.25
You Save: $86.32 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.3L | 1MZFE, 2AZFE, 3MZFE; ACU20L-BRPNKA, ACU20L-BWPNKA, ACU25L-BRPNKA, ACU25L-BWPNKA, MCU20L-BWPNKA, MCU23L-BRANKA, MCU23L-BWANKA, MCU25L-BWPNKA, MCU28L-BRANKA, MCU28L-BWANKA, MHU23L-BRXNKA, MHU23L-BWXNKA, MHU28L-BRXNKA, MHU28L-BWXNKA
View related parts

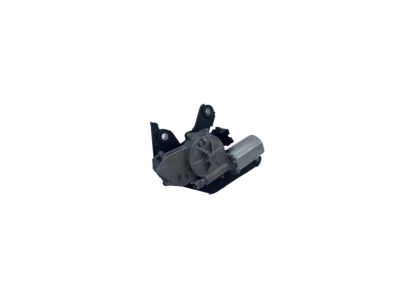

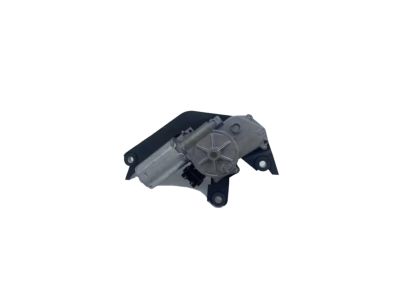

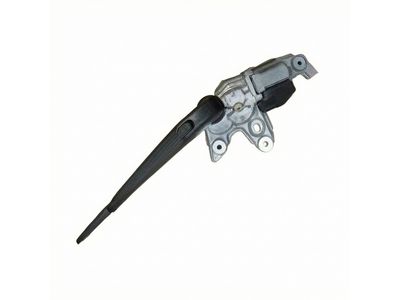

Toyota Highlander Motor Assembly, Rr WIPER
Part Number: 85130-0E120
$130.21 MSRP: $185.11
You Save: $54.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2024 Toyota Highlander | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L | 2GRFKS, A25AFXS, T24AFTS; AXUH70L-ARXGHA, AXUH70L-ARXMHA, AXUH70L-ARXNHA, AXUH78L-ARXGHA, AXUH78L-ARXMHA, AXUH78L-ARXNHA, GSU70L-ARZGHA, GSU70L-ARZMHA, GSU70L-ARZNHA, GSU70L-ARZSHA, GSU75L-ARZGHA, GSU75L-ARZMHA, GSU75L-ARZNHA, GSU75L-ARZSHA, TXUA70L-ARZGTA, TXUA70L-ARZMTA, TXUA70L-ARZNTA, TXUA70L-ARZSTA, TXUA75L-ARZGTA, TXUA75L-ARZMTA, TXUA75L-ARZNTA, TXUA75L-ARZSTA
View related parts
Toyota Highlander Motor Assy, Rear Wiper
Part Number: 85130-48020
$151.04 MSRP: $214.72
You Save: $63.68 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Highlander | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.3L | 1MZFE, 2AZFE, 3MZFE; ACU20L-BRPNKA, ACU20L-BWPNKA, ACU25L-BRPNKA, ACU25L-BWPNKA, MCU20L-BWPNKA, MCU23L-BRANKA, MCU23L-BWANKA, MCU25L-BWPNKA, MCU28L-BRANKA, MCU28L-BWANKA, MHU23L-BRXNKA, MHU23L-BWXNKA, MHU28L-BRXNKA, MHU28L-BWXNKA
View related parts

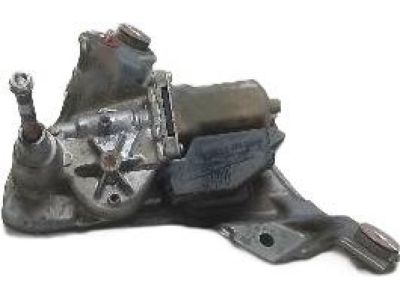

Toyota Highlander Motor Assembly, Rear WIPER
Part Number: 85130-0E070
$114.33 MSRP: $161.17
You Save: $46.84 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Rear Wiper; Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2019 Toyota Highlander | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS, 2GRFXE, 2GRFXS; ASU50L-ARTNKA, GSU50L-ARTGKA, GSU50L-ARTMKA, GSU50L-ARTNKA, GSU50L-ARZGHA, GSU50L-ARZMHA, GSU50L-ARZNHA, GSU55L-ARTGKA, GSU55L-ARTMKA, GSU55L-ARTNKA, GSU55L-ARZGHA, GSU55L-ARZMHA, GSU55L-ARZNHA, GVU58L-ARXGHA, GVU58L-ARXGKA, GVU58L-ARXMHA, GVU58L-ARXMKA, GVU58L-ARXNHA, GVU58L-ARXNKA
View related parts
Toyota Highlander Motor Assembly, Fr WIPER
Part Number: 85110-0E120
$163.67 MSRP: $232.68
You Save: $69.01 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2024 Toyota Highlander | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L | 2GRFKS, A25AFXS, T24AFTS; AXUH70L-ARXGHA, AXUH70L-ARXMHA, AXUH70L-ARXNHA, AXUH78L-ARXGHA, AXUH78L-ARXMHA, AXUH78L-ARXNHA, GSU70L-ARZGHA, GSU70L-ARZMHA, GSU70L-ARZNHA, GSU70L-ARZSHA, GSU75L-ARZGHA, GSU75L-ARZMHA, GSU75L-ARZNHA, GSU75L-ARZSHA, TXUA70L-ARZGTA, TXUA70L-ARZMTA, TXUA70L-ARZNTA, TXUA70L-ARZSTA, TXUA75L-ARZGTA, TXUA75L-ARZMTA, TXUA75L-ARZNTA, TXUA75L-ARZSTA
View related parts
Toyota Highlander Motor Assy, Windshield Wiper
Part Number: 85110-48120
$167.06 MSRP: $237.51
You Save: $70.45 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2011 Toyota Highlander | Grande, Limited, Medium, Sport, STD | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFXE, 3MZFE; ASU40L-ARTNKA, ASU40L-BRTNKA, GSU40L-ARAGKA, GSU40L-ARAMKA, GSU40L-ARANKA, GSU40L-ARASKA, GSU40L-BRAGKA, GSU40L-BRAMKA, GSU40L-BRANKA, GSU40L-BRASKA, GSU45L-ARAGKA, GSU45L-ARAMKA, GSU45L-ARANKA, GSU45L-ARASKA, GSU45L-BRAGKA, GSU45L-BRAMKA, GSU45L-BRANKA, GSU45L-BRASKA, GVU48L-BRXGKA, GVU48L-BRXNKA, MHU48L-BRXMKA, MHU48L-BRXNKA
View related parts

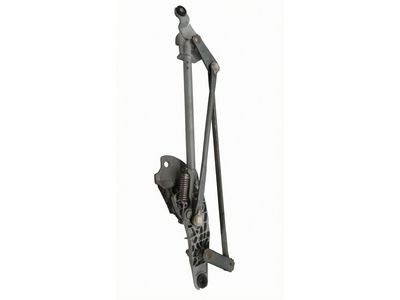

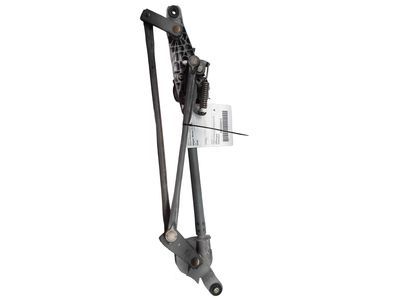

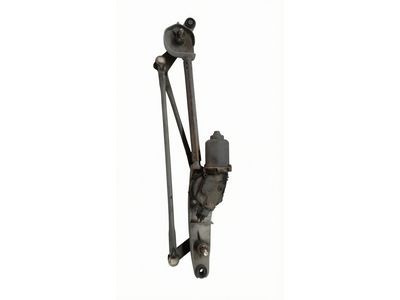

Toyota Highlander Motor Assembly, Front WIPER
Part Number: 85110-50160
$183.27 MSRP: $262.80
You Save: $79.53 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Windshield Wiper
- Position: Front
- Replaced by: 85110-0E050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2013 Toyota Highlander | Grande, Limited, Sport, STD | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFXE, 3MZFE; ASU40L-BRTNKA, GSU40L-BRAGKA, GSU40L-BRAMKA, GSU40L-BRANKA, GSU40L-BRASKA, GSU45L-BRAGKA, GSU45L-BRAMKA, GSU45L-BRANKA, GSU45L-BRASKA, GVU48L-BRXGKA, GVU48L-BRXNKA, MHU48L-BRXMKA, MHU48L-BRXNKA
View related parts
Toyota Highlander Motor Assy, Rear Wiper
Part Number: 85130-48050
$146.12 MSRP: $207.74
You Save: $61.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2013 Toyota Highlander | Grande, Limited, Sport, STD | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFXE, 3MZFE; ASU40L-BRTNKA, GSU40L-BRAGKA, GSU40L-BRAMKA, GSU40L-BRANKA, GSU40L-BRASKA, GSU45L-BRAGKA, GSU45L-BRAMKA, GSU45L-BRANKA, GSU45L-BRASKA, GVU48L-BRXGKA, GVU48L-BRXNKA, MHU48L-BRXMKA, MHU48L-BRXNKA
View related parts
Toyota Highlander Motor Assembly, Fr WIPER
Part Number: 85110-0E100
$147.06 MSRP: $209.07
You Save: $62.01 (30%)
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Manufacturer Note: WITHOUT(COLD AREA SPEC)
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2020-2024 Toyota Highlander | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L | 2GRFKS, A25AFXS, T24AFTS; AXUH70L-ARXGHA, AXUH70L-ARXMHA, AXUH70L-ARXNHA, AXUH78L-ARXGHA, AXUH78L-ARXMHA, AXUH78L-ARXNHA, GSU70L-ARZGHA, GSU70L-ARZMHA, GSU70L-ARZNHA, GSU70L-ARZSHA, GSU75L-ARZGHA, GSU75L-ARZMHA, GSU75L-ARZNHA, GSU75L-ARZSHA, TXUA70L-ARZGTA, TXUA70L-ARZMTA, TXUA70L-ARZNTA, TXUA70L-ARZSTA, TXUA75L-ARZGTA, TXUA75L-ARZMTA, TXUA75L-ARZNTA, TXUA75L-ARZSTA

Toyota Highlander Wiper Motor

If you are in demand for superior quality and affordable OEM Toyota Highlander Wiper Motor, then shop with us! We own a wide range of the reduced-priced genuine Toyota Highlander Wiper Motor. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Highlander Wiper Motor Parts Questions & Experts Answers

Motor Assy, Rear Wiper
85130-48040
Q: How to check the wiper motor circuit on Toyota Highlander?
A: Check both your battery voltage and its health to see if the wipers are slow. Make sure the battery works well. Clean, fix, and add lubricant to the linkage and pivots once you've taken the motor out and asked the arms to move by hand. Then put the motor back into place. Look again at your wiring, starting with the ground connection, and then consider replacing the motor if everything else looks good. When you hit the wiper switch and the wipers stay off, look in the driver side Fuse panel to see if the wiper fuse is blown. If it's good, try your own connection between the wiper ground terminal and ground; check to see if that helps the wipers work. When the motor won't work, look if a bad ground is causing the issue. Then, check for electrical supply to the motor while switching the wiper to highest speed, easily reached by taking off the cowl cover to access the electrical parts. Pull the wiper motor from the car, then use a wire from the battery, through a fuse, to test its operation away from the vehicle. When the motor runs, look into stuck linkage; reinstall it if necessary. When there's no voltage to the motor, begin by checking if voltage is flowing through the wiper control relays; if voltage is present at those relays but not at the motor, ask a mechanic to test your wiper switch for faults. When the switch works fine, most likely the wiper control relay is the issue. When the wipers won't run the correct time, check if all wires between the switch and motor control are working. Before closing the wiper switch, check the park feed wire of the wiper motor connector to see if it has voltage while the ignition is on. You should also test for an open circuit past the motor and into the fuse panel if no voltage is found. To get to the wiper motor, start by unlocking the trim panels covering the wiper arm wing nuts. Then loosen and remove those wing nuts from the wiper arms and note the positioning of each arm with the shaft before moving on. Uncover the plastic cowl protecting fresh air, pull the electrical cable of the wiper motor from its socket, and undo the mounting screw holding the wiper motor and link assembly together. Push the assembly to the right, removing the rubber insulation from locking it to a curved attachment. Unbolt the motor linkage rod at the crank arm's base, unscrew the crank arm bolt, indicate the crank arm's connection to the motor shaft, then take off the crank arm. Unbolt the wiper motor link rod from the wiper arm, pulling the whole motor and rod apart. To put it back in, just reverse these steps. To take off the rear wiper arm's motor, open the cap above it, unscrew the arm's holding bolt, write down how the arm fits on the motor shaft, and pull the arm off. To get to the rear wiper motor, you first must remove the trim panel from the back hatch door, disconnect the electrical power to the motor, take the rear wiper motor bolts off, and then you can safely detach the motor itself. Putting it all back together just follows the steps in reverse order.
