How to remove and install a power steering pump on Toyota Land Cruiser?

Loosen the pump drive belt and slip it over the pulley. Using a suction gun, withdraw as much power steering fluid from the reservoir as possible, then position a drain pan under the pump and disconnect the high-pressure line and fluid return hose, capping the ends of the lines to prevent excessive fluid leakage and the entry of contaminants. For vehicles equipped with 2F and 3F-E engines, remove the mounting bolts from the front of the pump, while for those with 1FZ-FE engines, remove the bolts attaching the steering pump to the engine block and then lift the pump from the engine. The installation of the power steering pump follows the reverse of the removal procedure, ensuring to replace the O-ring located between the engine block and power steering pump for 1FZ-FE engines.

Genuine Toyota Land Cruiser Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

14 Power Steering Pumps found

View related parts

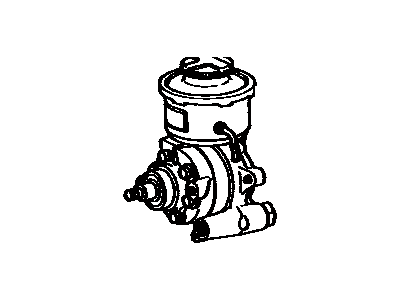

Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60182
$315.62 MSRP: $452.58
You Save: $136.96 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assy, Vane; Power Steering Pump, Pulley Adjust Bracket
- Replaces: 44320-60181
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1997 Toyota Land Cruiser | 6 Cyl 4.0L, 6 Cyl 4.5L | 1FZFE, 1FZFE; FZJ80L-GNPEKA, 3FE; FJ80L-GNPNEA, FZJ80L-GNPEKA
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60310
$316.67 MSRP: $454.08
You Save: $137.41 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Pump Assy, Vane; Power Steering Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Land Cruiser | 8 Cyl 4.7L | 2UZFE; UZJ100L-GNAEKA, UZJ100L-GNPEKA
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60090
$333.60 MSRP: $478.37
You Save: $144.77 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assy, Vane; Power Steering Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1988-1990 Toyota Land Cruiser | 6 Cyl 4.0L | 3FE; FJ62LG-PNEA, FJ62LG-PNEK, FJ62LV-PNEA
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60181
$315.62 MSRP: $452.58
You Save: $136.96 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assy, Vane
- Replaced by: 44320-60182
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1992-1996 Toyota Land Cruiser | 6 Cyl 4.0L, 6 Cyl 4.5L | 1FZFE, 3FE; FJ80L-GNPNEA, FZJ80L-GNPEKA
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44310-60390
$366.27 MSRP: $546.40
You Save: $180.13 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assy, Vane; Power Steering Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2007 Toyota Land Cruiser | 8 Cyl 4.7L | 2UZFE; UZJ100L-GNAEKA, UZJ100L-GNPEKA
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44310-60490
$333.60 MSRP: $478.36
You Save: $144.76 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assy, Vane; Power Steering Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2021 Toyota Land Cruiser | 8 Cyl 5.7L | 3URFE; URJ200L-GNTEKA, URJ200L-GNZVKA
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60041
Product Specifications
- Other Name: Pump Assy, Vane
- Replaced by: 44320-60071
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1981-1984 Toyota Land Cruiser | 6 Cyl 3.4L, 6 Cyl 4.2L | 2F, 3B; BJ42LV-KCJK, BJ42LV-MCJK, FJ40L-KJA, FJ40LV-KCJA, FJ40LV-KCJK
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60071
Product Specifications
- Other Name: Pump Assy, Vane; Power Steering Pump
- Replaces: 44320-60041
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1981-1987 Toyota Land Cruiser | 6 Cyl 3.4L, 6 Cyl 4.0L, 6 Cyl 4.2L | 2F, 2H, 3B; BJ42LV-KCJK, 3B; BJ60LG-KK, BJ42LV-MCJK, BJ60LG-MK, BJ60LV-KK, FJ40L-KJA, FJ40LV-KCJA, FJ40LV-KCJK, FJ60LG-KA, FJ60LV-KA, FJ60LV-KK, HJ60LG-MK, HJ60LG-PK
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60160
Product Specifications
- Other Name: Pump Assy, Vane
- Replaced by: 44320-60161
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991-1992 Toyota Land Cruiser | 6 Cyl 4.0L, 6 Cyl 4.5L | 1FZFE, 3FE; FJ80L-GNPNEA, FZJ80L-GNPEKA
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60020
Product Specifications
- Other Name: Pump Assy, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1979-1980 Toyota Land Cruiser | 6 Cyl 3.0L, 6 Cyl 4.2L | 2F, B; BJ40LV-KCJK, FJ40L-KJA, FJ40LV-KCJA, FJ40LV-KCJK, FJ45LP-KK, FJ55LG-KA, FJ55LG-KK
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60040
Product Specifications
- Other Name: Pump Assy, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1981-1982 Toyota Land Cruiser | 6 Cyl 3.4L, 6 Cyl 4.2L | 2F, 3B; BJ42LV-KCJK, BJ42LV-MCJK, BJ60LG-KK, BJ60LV-KK, FJ40L-KJA, FJ40LV-KCJA, FJ40LV-KCJK, FJ60LG-KA, FJ60LV-KK
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60070
Product Specifications
- Other Name: Pump Assy, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1981-1982 Toyota Land Cruiser | 6 Cyl 3.4L, 6 Cyl 4.2L | 2F, 3B; BJ60LG-KK, BJ60LG-MK, BJ60LV-KK, FJ60LG-KA, FJ60LV-KK
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60100
Product Specifications
- Other Name: Pump Assy, Vane
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1987 Toyota Land Cruiser | 6 Cyl 3.4L | 3B; BJ70LV-MNK, BJ70LV-MRK
View related parts
Toyota Land Cruiser Vane Pump Assembly
Part Number: 44320-60161
Product Specifications
- Other Name: Pump Assy, Vane; Power Steering Pump
- Replaces: 44320-60160
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1991-1993 Toyota Land Cruiser | 6 Cyl 4.0L, 6 Cyl 4.5L | 1FZFE, 3FE; FJ80L-GNPNEA, FZJ80L-GNPEKA

Toyota Land Cruiser Power Steering Pump

The Toyota Land Cruiser Power Steering Pump lessens the force required to rotate the wheel. The Power Steering Pump is belt driven from the crankshaft. It receives mechanical energy to convert it into pressurized fluid. The pressurized fluid travels via a high-pressure hose to the control valve of the Land Cruiser steering system. A second hose returns fluid from the control valve to the pump reservoir. As a result, the Land Cruiser maintains pressure in its steering circuit of the Toyota steering system through the contraption. While the steering wheel is in the center position, both sides of the hydraulic cylinder piston receive equal amounts of pressure. This keeps the wheels straight. When the steering wheel is turned, the valve will send pressure to one side of the piston. The Power Steering Pump causes assist to that side. The unit may have a built-in reservoir or receive fluid from a nearby mounted reservoir; in either case, the hoses and fittings are specified by Toyota. Inconsistent output from the Power Steering Pump can cause steering effort at low speed. In addition, it is common to notice wear that generates whining noises, even on vehicles with the correct fluid level such as the Toyota Land Cruiser. Therefore, continue to perform Power Steering Pump inspection.

If you are in demand for superior quality and affordable OEM Toyota Land Cruiser Power Steering Pump, then shop with us! We own a wide range of the reduced-priced genuine Toyota Land Cruiser Power Steering Pump. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Land Cruiser Power Steering Pump Parts Questions & Experts Answers

Vane Pump Assembly
44320-60181
Q: How to remove and install a power steering pump on Toyota Land Cruiser?
A:
Loosen the pump drive belt and slip it over the pulley. Using a suction gun, withdraw as much power steering fluid from the reservoir as possible, then position a drain pan under the pump and disconnect the high-pressure line and fluid return hose, capping the ends of the lines to prevent excessive fluid leakage and the entry of contaminants. For vehicles equipped with 2F and 3F-E engines, remove the mounting bolts from the front of the pump, while for those with 1FZ-FE engines, remove the bolts attaching the steering pump to the engine block and then lift the pump from the engine. The installation of the power steering pump follows the reverse of the removal procedure, ensuring to replace the O-ring located between the engine block and power steering pump for 1FZ-FE engines.
