How to check and replace Knock Sensor on Toyota Sienna?

The knock control system is designed to reduce spark knock during heavy detonation, allowing the engine to utilize optimal spark advance for improved driveability. The knock sensor detects abnormal engine vibrations and produces a voltage output that increases with the severity of the knock, which is monitored by the PCM to retard ignition timing until detonation ceases. The models in question use two knock sensors located under the intake manifold. To check a knock sensor, disconnect the electrical connector and verify that there is no continuity between the sensor terminal and the body of the sensor using an ohmmeter; continuity should not exist, and if it does, the sensor should be replaced. For replacement, first disconnect the cable from the negative terminal of the battery, then drain the cooling system, remove the lower intake manifold, disconnect the electrical connector, and remove the knock sensor. If reusing the old sensor, coat the threads with thread sealant, as new sensors come pre-coated. Install the knock sensor securely, approximately 30 ft-lbs, avoiding overtightening to prevent damage. Finally, reconnect the electrical connector, reinstall the remaining components, refill the cooling system, and check for leaks.

Genuine Toyota Sienna Knock Sensor

Engine Knock Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Knock Sensors found

View related parts

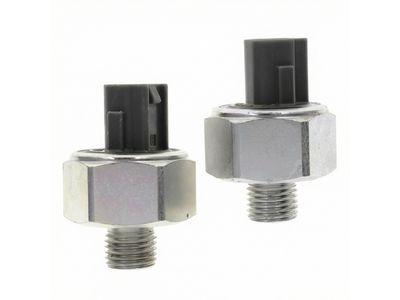

Toyota Sienna Knock Control Sensor
Part Number: 89615-12090
$144.60 MSRP: $205.57
You Save: $60.97 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Knock Control; Knock Sensor
- Manufacturer Note: DENSO
- Replaces: 89615-12050, 89615-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Knock Control Sensor
Part Number: 89615-06010
$137.46 MSRP: $195.42
You Save: $57.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Knock Control; Knock Sensor
- Replaces: 89615-BZ030, 89615-20090, 89615-BZ040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2024 Toyota Sienna | CE, LE, SE, STD, XLE | 4 Cyl 2.5L, 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS, 3MZFE, 3MZFE; ASL30L-PFTEKA, A25AFXS; ASL30L-PFTEKA, A25AFXS; AXLH40L-PNXLHA, ASL30L-PRTEKA, AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA, GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Knock Control Sensor
Part Number: 89615-20090
$137.46 MSRP: $195.42
You Save: $57.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Knock Control
- Replaced by: 89615-06010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
- 2004-2015 Toyota Sienna | CE, LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 3MZFE; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL33L-SBTDKA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Knock Control Sensor
Part Number: 89615-12040
$183.96 MSRP: $263.80
You Save: $79.84 (31%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Knock Control; Knock Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2000 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna SENSOR, KNOCK CONTRO
Part Number: 89615-F6010
$122.37 MSRP: $173.97
You Save: $51.60 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knock Sensor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts
Toyota Sienna SENSOR, KNOCK CONTRO
Part Number: 89615-78010
$122.96 MSRP: $174.80
You Save: $51.84 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2022-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA

Toyota Sienna Knock Sensor

This component known as Knock Sensor play a very crucial role in the improvement of the Toyota Sienna's engine. This sophisticated gadget identifies engine knock, caused by improper positioning of the ignition and transmits important signals to the PCM. Since the Knock Sensor dims its functionality to correct the ignition timing in real time, the Knock Sensor assists in avoiding unneeded damage when using non-high octane fuel. Piezoelectric is applied on its structure to enable measurement of the vibrations where the engine is in different modes of operation. The Toyota Sienna is a reliable minivan that has been in the market since 1997 and incorporating the Knock Sensor in various models shows their reliability in safety and quality. Due to the facility of taking precise demand for each cylinder, Knock Sensor can be said to be the highly suitable automotive invention in the market and plays a vital role to make the Sienna a reliable car. Toyota Sienna of the third generation is produced since 2011, and it also has a numerous advantages due to intelligent usage of this technology, as it provides the car with numerous engines and configurations, which are interesting for different buyers. In conclusion, the Knock Sensor not only contributes to improving the operation performance of the vehicle but also is very important for protecting and prolonging the life of the Toyota Sienna and its components, subsequently, it is absolutely one of the significant elements for any Sienna automobile owner.

If you are in demand for superior quality and affordable OEM Toyota Sienna Knock Sensor, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Knock Sensor. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Knock Sensor Parts Questions & Experts Answers

Knock Control Sensor
89615-06010
Q: How to check and replace Knock Sensor on Toyota Sienna?
A:
The knock control system is designed to reduce spark knock during heavy detonation, allowing the engine to utilize optimal spark advance for improved driveability. The knock sensor detects abnormal engine vibrations and produces a voltage output that increases with the severity of the knock, which is monitored by the PCM to retard ignition timing until detonation ceases. The models in question use two knock sensors located under the intake manifold. To check a knock sensor, disconnect the electrical connector and verify that there is no continuity between the sensor terminal and the body of the sensor using an ohmmeter; continuity should not exist, and if it does, the sensor should be replaced. For replacement, first disconnect the cable from the negative terminal of the battery, then drain the cooling system, remove the lower intake manifold, disconnect the electrical connector, and remove the knock sensor. If reusing the old sensor, coat the threads with thread sealant, as new sensors come pre-coated. Install the knock sensor securely, approximately 30 ft-lbs, avoiding overtightening to prevent damage. Finally, reconnect the electrical connector, reinstall the remaining components, refill the cooling system, and check for leaks.
