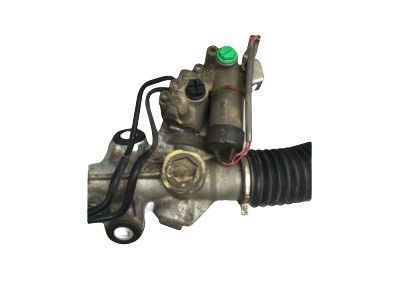

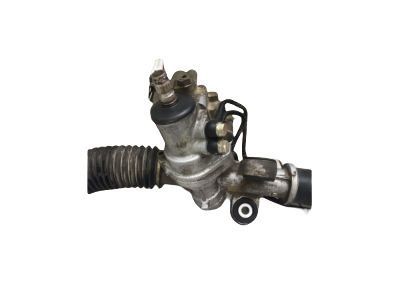

Toyota 44250-20100 Power Steering Gear Assembly(For Rack & Pinion)

To remove the Rack And Pinion, start by loosening the front wheel lug nuts and raising the front of the vehicle on jack stands. Separate the Tie Rod End from the steering knuckle arms. Remove the suspension cross member and engine center mounting member. Support the steering gear and remove the Rack And Pinion bracket to the firewall mounting bolts. Separate the intermediate shaft from the Rack And Pinion input shaft and lower it down and pull it out toward the left. Check the Rack And Pinion mounting grommets for wear or deterioration and replace if necessary. To install the Rack And Pinion, raise it into position and connect the U-joint, aligning the marks. Install the mounting brackets and bolts, tightening them securely. Connect the tie-rod ends to the steering knuckle arms and install the U-joint pinch bolt. Connect the power steering pressure and return hoses, and fill the power steering pump reservoir with the recommended fluid. Install the engine rear mounting bracket and tighten the bolts securely. Install the engine center mounting member and suspension cross member. Lower the vehicle and bleed the steering system.
