Genuine Toyota 4Runner Throttle Cable

Toyota 4Runner Throttle Cable Parts Questions & Answers

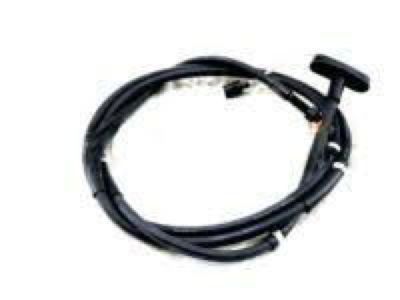

• Cable Assembly, Throttle
  35520-35230
  Q: How to check and adjust the throttle valve cable on Toyota 4Runner,Toyota T100 and Toyota Tacoma?

  A: For 2003 and later model 3.4L V6 vehicles, it is important to note that they do not have a throttle valve cable. Instead, downshifts are controlled by an internal solenoid. Remove the shift solenoid valves from the valve body and the oil pipes. Remove the oil strainer if equipped, and then remove the valve body by removing the specified bolts. Lower the valve body and disengage the TV cable from the throttle cam. Insert the new cable through the hole in the case and secure it with the cable hold-down bolt. Connect the new TV cable to the cam and ensure that the groove of the manual valve is aligned with the pin of the lever before installing the valve body. Stake the cable stopper between 0.8 and 1.5 mm from the end of the cable sheath if the throttle cable being installed is new. Fill the transmission with new ATF and check the fluid level. Don't forget to check and adjust the TV cable if necessary.
