How to remove and install the front stabilizer bar and bushing on 2002 through 2008 Toyota Solara?

To remove the front wheels, first loosen the lug nuts, then raise the front of the vehicle and support it securely on jackstands, applying the parking brake and blocking the rear wheels to prevent rolling. Next, take off the left and right fender apron seals, which are held by two bolts each. Disconnect the left and right tie-rod ends from the steering knuckles, and then disconnect the sway bar links from the bar by removing the lower nut; if the strut is being removed, the upper nut should be taken off instead. If the ballstud turns with the nut, hold it with an Allen wrench. Detach both sway bar bushing retainers from the subframe by removing the bushing retainer bolts. Remove the front exhaust pipe and the steering gear mounting bolts. Lift the steering gear assembly and work the sway bar out through the left wheel housing. While the sway bar is off, slide off the retainer bushings and inspect them for cracks or wear, replacing them if necessary. Check the sway bar link by flipping the balljoint stud side-to-side and then installing the nut, using an inch-pound torque wrench to ensure the torque reading is about 0.4 to 17 in-lbs; replace the link assembly if it isn't. Clean the bushing area of the sway bar with a stiff wire brush to remove rust or dirt. For installation, lubricate the inside and outside of the new bushings with vegetable oil to ease reassembly, avoiding petroleum or mineral-based lubricants or brake fluid, as they can deteriorate the bushings. The installation process follows the reverse order of removal.

Genuine Toyota Solara Sway Bar Bushing

Stabilizer Sway Bar Bushing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Sway Bar Bushings found

View related parts
Toyota Solara Bush, Front STABILIZER Bar
Part Number: 48815-06090
$9.66 MSRP: $13.50
You Save: $3.84 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Position: Front
- Replaces: 48815-33100
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, ACV30L-GCPGKA, ACV30L-GCPNKA, MCV31L-GCAGKA, MCV31L-GCANKA, MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Bush, Stabilizer, Rear
Part Number: 48818-06090
$13.93 MSRP: $19.48
You Save: $5.55 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Stabilizer Bar Bushing
- Position: Rear
- Replaces: 48818-0T010, 48818-33050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Solara | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L | 1MZFE, 2AZFE, 5SFE; ACV20L-GCMNKA, ACV20L-GCPNKA, ACV20L-GCPNKK, ACV20L-GKPNKA, MCV20L-GCMNKA, MCV20L-GCMNKK, MCV20L-GCPNKA, MCV20L-GCPNKK, MCV20L-GKPNKA, MCV20L-GKPNKK, SXV20L-GCMNKA, SXV20L-GCPNKA, SXV20L-GCPNKK, SXV20L-GKPNKA
View related parts
Toyota Solara Bush, STABILIZER
Part Number: 48815-06080
$10.12 MSRP: $14.14
You Save: $4.02 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Manufacturer Note: OD=23
- Comment: (FOR REAR)
- Replaces: 48815-33090
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, ACV30L-GCPGKA, ACV30L-GCPNKA, MCV31L-GCAGKA, MCV31L-GCANKA, MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Bush, Stabilizer, Rear
Part Number: 48818-0E010
$10.22 MSRP: $14.28
You Save: $4.06 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Stabilizer Bar Bushing
- Position: Rear
- Replaces: 48818-48030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, ACV30L-GCPGKA, ACV30L-GCPNKA, MCV31L-GCAGKA, MCV31L-GCANKA, MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Bush, Front STABILIZER Bar
Part Number: 48815-06050
$12.26 MSRP: $17.13
You Save: $4.87 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1
- Position: Front
- Replaced by: 48815-33050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Solara | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L | 1MZFE, 2AZFE, 5SFE; ACV20L-GCMNKA, ACV20L-GCPNKA, ACV20L-GCPNKK, ACV20L-GKPNKA, MCV20L-GCMNKA, MCV20L-GCMNKK, MCV20L-GCPNKA, MCV20L-GCPNKK, MCV20L-GKPNKA, MCV20L-GKPNKK, SXV20L-GCMNKA, SXV20L-GCPNKA, SXV20L-GCPNKK, SXV20L-GKPNKA
View related parts
Toyota Solara Bush, Stabilizer, Rear
Part Number: 48818-AA010
$8.68 MSRP: $12.13
You Save: $3.45 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Stabilizer Bar Bushing
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, ACV30L-GCPGKA, ACV30L-GCPNKA, MCV31L-GCAGKA, MCV31L-GCANKA, MCV31L-GKAGKA, MCV31L-GKANKA
View related parts

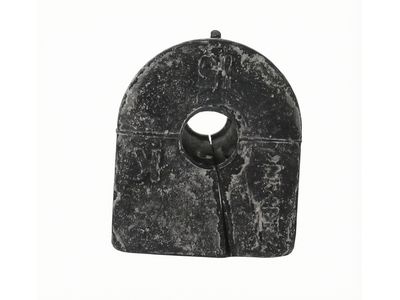

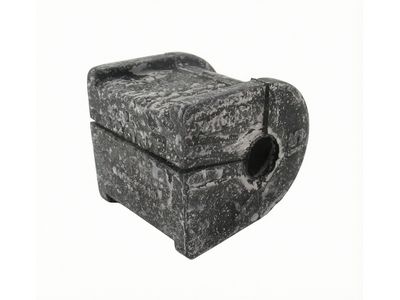

Toyota Solara Bush, Stabilizer, Rear
Part Number: 48818-06130
$19.78 MSRP: $27.64
You Save: $7.86 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Stabilizer Bar Bushing
- Position: Rear
- Replaces: 48818-33040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Solara | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L | 1MZFE, 2AZFE, 5SFE; ACV20L-GCMNKA, ACV20L-GCPNKA, ACV20L-GCPNKK, ACV20L-GKPNKA, MCV20L-GCMNKA, MCV20L-GCMNKK, MCV20L-GCPNKA, MCV20L-GCPNKK, MCV20L-GKPNKA, MCV20L-GKPNKK, SXV20L-GCMNKA, SXV20L-GCPNKA, SXV20L-GCPNKK, SXV20L-GKPNKA

Toyota Solara Sway Bar Bushing

If you are in demand for superior quality and affordable OEM Toyota Solara Sway Bar Bushing, then shop with us! We own a wide range of the reduced-priced genuine Toyota Solara Sway Bar Bushing. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Solara Sway Bar Bushing Parts Questions & Experts Answers

Bush, Front STABILIZER Bar
48815-06050
Q: How to remove and install the front stabilizer bar and bushing on 2002 through 2008 Toyota Solara?
A: To remove the front wheels, first loosen the lug nuts, then raise the front of the vehicle and support it securely on jackstands, applying the parking brake and blocking the rear wheels to prevent rolling. Next, take off the left and right fender apron seals, which are held by two bolts each. Disconnect the left and right tie-rod ends from the steering knuckles, and then disconnect the sway bar links from the bar by removing the lower nut; if the strut is being removed, the upper nut should be taken off instead. If the ballstud turns with the nut, hold it with an Allen wrench. Detach both sway bar bushing retainers from the subframe by removing the bushing retainer bolts. Remove the front exhaust pipe and the steering gear mounting bolts. Lift the steering gear assembly and work the sway bar out through the left wheel housing. While the sway bar is off, slide off the retainer bushings and inspect them for cracks or wear, replacing them if necessary. Check the sway bar link by flipping the balljoint stud side-to-side and then installing the nut, using an inch-pound torque wrench to ensure the torque reading is about 0.4 to 17 in-lbs; replace the link assembly if it isn't. Clean the bushing area of the sway bar with a stiff wire brush to remove rust or dirt. For installation, lubricate the inside and outside of the new bushings with vegetable oil to ease reassembly, avoiding petroleum or mineral-based lubricants or brake fluid, as they can deteriorate the bushings. The installation process follows the reverse order of removal.
