Where is the Turn Signal Flasher Located and How to Replace it on a Toyota Sienna?

The turn signal/hazard flasher is in a brown canister-shaped unit inside the relay center beneath the dashboard just in front of the steering column; the knee bolster has to be pulled out to get it. As is evident when the flasher is functional, it will make a clicking noise during operation. Tens of thousands of dollars A quick flash of the turn signal lamp on the left or the right suggests that there is a burnt turn signal bulb on the left or the right side. If both turn signals fail to blink, there could be; a bad flasher, a bad switch, a loose connection, or a blown fuse. A simple look at the fuse board may show that the turn signal fuse has blown; before replacing the fuse, the wiring should be checked for a fault. In order to remove the flasher to replace it with a new one, the following procedures are followed Pull the flasher out of its holder and remove the connector from it it is important to ensure that the new flasher that is being installed is of the same type as the old one Installation process is done in the reverse order of the removal process.

Genuine Toyota Sienna Turn Signal Flasher

Turn Signal Indicator Flasher

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Turn Signal Flashers found

View related parts
Toyota Sienna Turn Signal Flasher Assembly
Part Number: 81980-32010
$54.97 MSRP: $76.83
You Save: $21.86 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Flasher Assy, Turn Signal; Flasher, Hazard Flasher, Turn Signal Flasher
- Manufacturer Note: DENSO
- Replaces: 81980-12110, 81980-AA020, 81980-12070, 81980-50010, 81980-03010, 81980-06010, 81980-AA021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Turn Signal Flasher Assembly
Part Number: 81980-12070
$54.97 MSRP: $76.83
You Save: $21.86 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Flasher Assy, Turn Signal
- Replaced by: 81980-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2001 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Turn Signal Flasher Assembly
Part Number: 81980-02030
$58.89 MSRP: $82.32
You Save: $23.43 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Flasher Assy, Turn Signal; Flasher, Flasher Relay, Relay, Turn Signal Flasher
- Replaces: 81980-05060, 81980-50030, 81980-05040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2015 Toyota Sienna | CE, LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 3MZFE; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL33L-SBTDKA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Turn Signal Flasher Assembly
Part Number: 81980-AA021
$54.97 MSRP: $76.83
You Save: $21.86 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Flasher Assy, Turn Signal
- Replaced by: 81980-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts

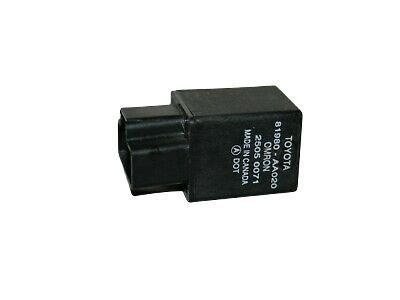

Toyota Sienna Turn Signal Flasher Assembly
Part Number: 81980-AA020
$54.97 MSRP: $76.83
You Save: $21.86 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Flasher Assy, Turn Signal
- Replaced by: 81980-32010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-1999 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK

Toyota Sienna Turn Signal Flasher

The Turn Signal Flasher of the Toyota Sienna helps to keep the minivan's indicators blinking in a consistent pattern to alert nearby drivers of your plan to turn or merge. Located in the fuse block, this small relay gets current when the lever is moved on the steering column, then interrupts that current in a timed way to turn the lamps off and on quickly. The early models of the Sienna utilized a thermal design Turn Signal Flasher that heated a strip of spring steel. The strip would bend to close the circuit and then cool down to repeat the process. The sequential process of heating and cooling created both the click sound and the flash that many Sienna drivers would be familiar with. In later years, an electronic or solid state Turn Signal Flasher relying on a transistorized timing chip to create the same rhythm without heat was adopted. This design pairs nicely with modern LED bulbs and multiple-lamp circuits. Every Turn Signal Flasher, whether thermal or solid state, is calibrated for the electrical load of the specific Toyota wiring. When the proper Turn Signal Flasher unit is installed, hyper flashing or total lamp failure is prevented. The result is that every Toyota Sienna signals clearly.

If you are in demand for superior quality and affordable OEM Toyota Sienna Turn Signal Flasher, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Turn Signal Flasher. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Turn Signal Flasher Parts Questions & Experts Answers

Turn Signal Flasher Assembly
81980-12070
Q: Where is the Turn Signal Flasher Located and How to Replace it on a Toyota Sienna?
A:
The turn signal/hazard flasher is in a brown canister-shaped unit inside the relay center beneath the dashboard just in front of the steering column; the knee bolster has to be pulled out to get it. As is evident when the flasher is functional, it will make a clicking noise during operation. Tens of thousands of dollars A quick flash of the turn signal lamp on the left or the right suggests that there is a burnt turn signal bulb on the left or the right side. If both turn signals fail to blink, there could be; a bad flasher, a bad switch, a loose connection, or a blown Fuse. A simple look at the fuse board may show that the turn signal fuse has blown; before replacing the fuse, the wiring should be checked for a fault. In order to remove the flasher to replace it with a new one, the following procedures are followed Pull the flasher out of its holder and remove the connector from it it is important to ensure that the new flasher that is being installed is of the same type as the old one Installation process is done in the reverse order of the removal process.
