How to Test and Replace the Fuel Level Sensor on a Toyota Land Cruiser's Fuel-Injected Engine?

For 1988-1990 models, you'll need to remove the fuel tank to access the Fuel Level Sensor. For 1991-1996 models, remove the middle seat for access. Before testing, determine the tank's actual fuel level. On 1988-1990 models, test resistance via the harness connector near the tank. On 1991 and later models, access the unit after removing the rear seat and fuel pump cover. The full tank resistance should be around 17 ohms for 1988-1990 models and 3.0 ohms for 1991 and later models. The nearly empty tank resistance should be about 120 ohms for 1988-1990 and 110 ohms for 1991 and later. Incorrect readings require replacement. The unit's resistance can also be tested with the float arm down (empty) and up (full). To replace, remove the fuel pump assembly, extract the Fuel Level Sensor, disconnect the electrical connectors, and remove the bracket screw. Reverse steps for installation.

Genuine Toyota Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

318 Fuel Level Sensors found

View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-69015
$171.51 MSRP: $243.83
You Save: $72.32 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender
Fits the following Toyota Models:
- Land Cruiser | 1981-1990 | 6 Cyl 3.4L, 6 Cyl 4.0L, 6 Cyl 4.2L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-60440
$120.97 MSRP: $171.97
You Save: $51.00 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Fuel Sender Unit
Fits the following Toyota Models:
- 4Runner | 2003-2009 | Limited, SR5 | 6 Cyl 4.0L, 8 Cyl 4.7L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-69055
$181.30 MSRP: $259.97
You Save: $78.67 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge, Fuel Gauge Sending Unit
Fits the following Toyota Models:
- Land Cruiser | 1991-1997 | 6 Cyl 4.0L, 6 Cyl 4.5L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-33030
$171.86 MSRP: $244.34
You Save: $72.48 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Gauge Unit, Sending Unit
Fits the following Toyota Models:
- Avalon | 1997-1999 | XL, XLS | 6 Cyl 3.0L
- Camry | 1997-2001 | CE, LE, XLE | 4 Cyl 2.2L, 6 Cyl 3.0L
- Solara | 1999-2003 | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L
View More
View related parts

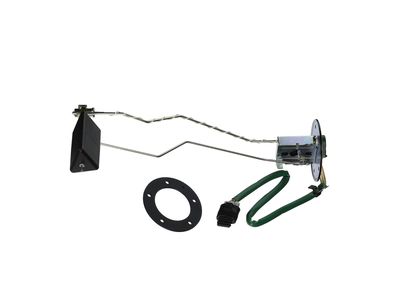

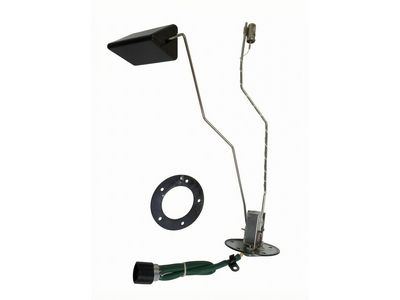

Toyota Fuel Sender Gage Assembly
Part Number: 83320-39695
$195.33 MSRP: $280.09
You Save: $84.76 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit
- Manufacturer Note: FUEL TANK:65LITER
Fits the following Toyota Models:
- 4Runner | 1985-1989 | DLX, SDT, SR5, SR5 Turbo, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
- Pickup | 1985-1989 | DLX, SDT, SR5, SR5 Turbo, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-60051
$95.33 MSRP: $134.38
You Save: $39.05 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit
Fits the following Toyota Models:
- Land Cruiser | 1979-1984 | 6 Cyl 3.0L, 6 Cyl 3.4L, 6 Cyl 4.2L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-60050
$95.33 MSRP: $134.38
You Save: $39.05 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender
Fits the following Toyota Models:
- Land Cruiser | 1972-1980 | 6 Cyl 3.0L, 6 Cyl 3.9L, 6 Cyl 4.2L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-02010
$77.04 MSRP: $108.61
You Save: $31.57 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender
Fits the following Toyota Models:
- Corolla | 2004-2019 | CE, ECO, ECOSW, LE, S, STD, XR, XRS | 4 Cyl 1.8L, 4 Cyl 2.4L
- Matrix | 2004-2014 | CE, LE, S, STD, XR, XRS | 4 Cyl 1.8L, 4 Cyl 2.4L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-39516
$134.77 MSRP: $191.61
You Save: $56.84 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit
- Manufacturer Note: FUEL TANK:65LITER
Fits the following Toyota Models:
- 4Runner | 1985-1989 | DLX, SDT, SR5, SR5 Turbo, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
- Pickup | 1985-1989 | DLX, SDT, SR5, SR5 Turbo, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
View related parts
Toyota Sensor, Fuel PRESSUR
Part Number: 89458-06021
$164.49 MSRP: $233.85
You Save: $69.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Pressure Regulator, Pressure Sensor
- Manufacturer Note: (L)
- Replaces: 89458-33041
Fits the following Toyota Models:
- Avalon | 2019-2022 | Limited, Touring, XLE, XSE | 4 Cyl 2.5L, 6 Cyl 3.5L
- Camry | 2018-2024 | LE, No Grade, SE, XLE, XSE | 4 Cyl 2.5L, 6 Cyl 3.5L
- Corolla | 2019-2024 | 4 Cyl 1.8L, 4 Cyl 2.0L
- Corolla Cross | 2022-2024 | L, LE, S, SE, XLE, XSE | 4 Cyl 2.0L
- Highlander | 2020-2024 | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- RAV4 | 2019-2024 | 4 Cyl 2.5L
- RAV4 Prime | 2021-2024 | SE, XSE | 4 Cyl 2.5L
- Sienna | 2021-2024 | 4 Cyl 2.5L
- Venza | 2021-2024 | 4 Cyl 2.5L
View More
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-35620
$119.68 MSRP: $170.14
You Save: $50.46 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Sending Unit
Fits the following Toyota Models:
- 4Runner | 2000-2002 | LULI, SR5B, SR5V | 4 Cyl 2.7L, 6 Cyl 3.4L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-35590
$120.62 MSRP: $171.48
You Save: $50.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender
- Replaces: 83320-35530
Fits the following Toyota Models:
- 4Runner | 1998-2001 | LULI, SR5B, SR5V | 4 Cyl 2.7L, 6 Cyl 3.4L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-80136
$171.04 MSRP: $243.17
You Save: $72.13 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Sending Unit
Fits the following Toyota Models:
- 4Runner | 1989-1995 | DLX, SR5, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
- Pickup | 1989-1995 | DLX, SR5, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-60340
$194.98 MSRP: $279.59
You Save: $84.61 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Fuel Sender Unit
Fits the following Toyota Models:
- Land Cruiser | 1998-2007 | 8 Cyl 4.7L
View related parts
Toyota Gage Assembly, Fuel Send
Part Number: 83320-04030
$107.37 MSRP: $151.34
You Save: $43.97 (30%)
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Sending Unit
- Replaces: 83320-04021, 83320-04020
Fits the following Toyota Models:
- Tacoma | 2005-2016 | Base, Limited, SR5 | 4 Cyl 2.7L, 6 Cyl 3.5L, 6 Cyl 4.0L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-80308
$96.63 MSRP: $136.21
You Save: $39.58 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Sending Unit
Fits the following Toyota Models:
- Tacoma | 1995-2001 | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-80331
$199.97 MSRP: $286.75
You Save: $86.78 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Sending Unit
Fits the following Toyota Models:
- 4Runner | 1996-1999 | LULI, SR5B, SR5V | 4 Cyl 2.7L, 6 Cyl 3.4L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-35560
$195.33 MSRP: $280.09
You Save: $84.76 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Sending Unit
Fits the following Toyota Models:
- Tacoma | 2000-2004 | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L
View related parts
Toyota Fuel Sender Gage Assembly
Part Number: 83320-35530
$120.62 MSRP: $171.48
You Save: $50.86 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender
- Replaced by: 83320-35590
Fits the following Toyota Models:
- 4Runner | 1998-2001 | LULI, SR5B, SR5V | 4 Cyl 2.7L, 6 Cyl 3.4L
View related parts
Toyota Gage Assembly, Fuel Send
Part Number: 83320-0C060
$76.45 MSRP: $107.76
You Save: $31.31 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gage Assy, Fuel Sender; Fuel Gauge Sending Unit, Fuel Sender Unit
- Manufacturer Note: FUEL TANK-38 GALLON
Fits the following Toyota Models:
- Tundra | 2014-2020 | Limited, Platinum, SR5 | 6 Cyl 4.0L, 8 Cyl 4.6L, 8 Cyl 5.7L

| Page 1 of 16 |Next >

1-20 of 318 Results

Toyota Fuel Level Sensor Parts Questions & Experts Answers

Fuel Sender Gage Assembly
83320-69015
Q: How to Test and Replace the Fuel Level Sensor on a Toyota Land Cruiser's Fuel-Injected Engine?
A:
For 1988-1990 models, you'll need to remove the fuel tank to access the Fuel Level Sensor. For 1991-1996 models, remove the middle seat for access. Before testing, determine the tank's actual fuel level. On 1988-1990 models, test resistance via the harness connector near the tank. On 1991 and later models, access the unit after removing the rear seat and fuel pump cover. The full tank resistance should be around 17 ohms for 1988-1990 models and 3.0 ohms for 1991 and later models. The nearly empty tank resistance should be about 120 ohms for 1988-1990 and 110 ohms for 1991 and later. Incorrect readings require replacement. The unit's resistance can also be tested with the float arm down (empty) and up (full). To replace, remove the fuel pump assembly, extract the Fuel Level Sensor, disconnect the electrical connectors, and remove the bracket screw. Reverse steps for installation.
