How to replace Release Bearing on Toyota Land Cruiser?

To remove the component, first disconnect the negative cable from the battery, then remove the transmission. Disengage the clutch release lever from the ballstud and take out the bearing and lever. For inspection, hold the bearing by the outer race and rotate the inner race while applying pressure; if it doesn't turn smoothly or is noisy, replace the bearing or hub assembly with a new one. Wipe the bearing with a clean rag and check for damage, wear, and cracks, avoiding immersion in solvent as it is sealed for life. Also, inspect the release lever for any cracks or bends. For installation, lubricate the bearing surface of the input shaft retainer with high-temperature grease, and apply the same grease to the input shaft splines to facilitate sliding through the clutch hub. Lubricate the release lever ball socket, lever ends, and release cylinder pushrod socket with high-temperature grease. Attach the retaining clips and the release bearing to the release lever, then slide the release bearing onto the transmission input shaft bearing retainer while passing the end of the release lever through the opening in the clutch housing, ensuring the clutch release lever is firmly seated on the ballstud. Apply a light coat of high-temperature grease to the face of the release bearing where it contacts the pressure plate diaphragm fingers. Finally, complete the installation by reversing the removal steps.

Genuine Toyota Land Cruiser Release Bearing

Clutch Release Throw Out Bearing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Release Bearings found

View related parts
Toyota Land Cruiser Hub, Clutch Release Bearing
Part Number: 31231-60070
$80.82 MSRP: $113.92
You Save: $33.10 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 31231-60031, 31231-60040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1974-1987 Toyota Land Cruiser | 6 Cyl 3.0L, 6 Cyl 3.4L, 6 Cyl 3.9L, 6 Cyl 4.0L, 6 Cyl 4.2L | 2F, 2H, 3B; BJ42LV-KCJK, 3B; BJ60LG-MK, B, BJ42LV-MCJK, BJ60LG-KK, BJ60LG-MK, BJ60LV-KK, F; BJ40LV-KCJK, FJ40L-A, FJ40L-KJA, FJ40L-KJK, FJ40LV-A, FJ40LV-AC, FJ40LV-KCJA, FJ40LV-KCJK, FJ45LP-KK, FJ55LG-, FJ55LG-KA, FJ55LG-KK, FJ60LG-KA, FJ60LV-KA, FJ60LV-KK, HJ60LG-MK, HJ60LG-PK
View related parts
Toyota Land Cruiser Hub, Clutch Release Bearing
Part Number: 31231-60031
$80.82 MSRP: $113.92
You Save: $33.10 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 31231-60070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1974-1980 Toyota Land Cruiser | 6 Cyl 3.0L, 6 Cyl 3.9L, 6 Cyl 4.2L | 2F, B, F; BJ40LV-KCJK, FJ40L-A, FJ40L-KJA, FJ40L-KJK, FJ40LV-A, FJ40LV-AC, FJ40LV-KCJA, FJ40LV-KCJK, FJ45LP-KK, FJ55LG-, FJ55LG-KA, FJ55LG-KK
View related parts

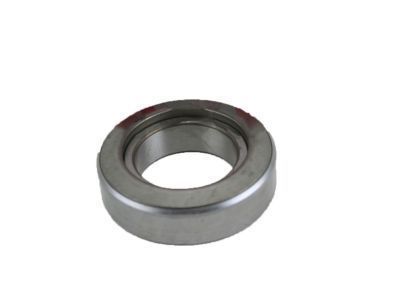

Toyota Land Cruiser Bearing, Ball
Part Number: 90363-52001
$88.30 MSRP: $124.47
You Save: $36.17 (30%)
ADD TO CART
Product Specifications
- Other Name: Bearing, Ball(For Clutch Release Hub)
- Comment: (FOR CLUTCH RELEASE HUB)
- Replaced by: 90363-52001-77
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1981-1987 Toyota Land Cruiser | 6 Cyl 3.4L, 6 Cyl 4.0L, 6 Cyl 4.2L | 2F, 2H, 3B; BJ42LV-KCJK, BJ42LV-MCJK, BJ60LG-KK, BJ60LG-MK, BJ60LV-KK, FJ40L-KJA, FJ40LV-KCJA, FJ40LV-KCJK, FJ60LG-KA, FJ60LV-KA, FJ60LV-KK, HJ60LG-MK, HJ60LG-PK
View related parts
Toyota Land Cruiser Hub, Clutch Release Bearing
Part Number: 31231-60040
$80.82 MSRP: $113.92
You Save: $33.10 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 31231-60070
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1981-1986 Toyota Land Cruiser | 6 Cyl 3.4L, 6 Cyl 4.0L, 6 Cyl 4.2L | 2F, 2H, 3B; BJ42LV-KCJK, BJ42LV-MCJK, BJ60LG-KK, BJ60LG-MK, BJ60LV-KK, FJ40L-KJA, FJ40LV-KCJA, FJ40LV-KCJK, FJ60LG-KA, FJ60LV-KA, FJ60LV-KK, HJ60LG-MK, HJ60LG-PK
View related parts
Toyota Land Cruiser Bearing, Ball
Part Number: 90363-45002
$79.28 MSRP: $111.76
You Save: $32.48 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing, Ball(For Clutch Release Hub)
- Comment: (FOR CLUTCH RELEASE HUB)
- Replaces: 90363-45001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1987 Toyota Land Cruiser | 6 Cyl 3.4L | 3B; BJ70LV-MNK, BJ70LV-MRK
View related parts
Toyota Land Cruiser Bearing, Ball
Part Number: 90363-52086
Product Specifications
- Other Name: Bearing, Ball(For Clutch Release Hub)
- Comment: (FOR CLUTCH RELEASE HUB)
- Replaced by: 90363-52001-77
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1974-1982 Toyota Land Cruiser | 6 Cyl 3.0L, 6 Cyl 3.4L, 6 Cyl 3.9L, 6 Cyl 4.2L | 2F, 3B, B, F; BJ40LV-KCJK, BJ42LV-KCJK, BJ42LV-MCJK, BJ60LG-KK, BJ60LG-MK, BJ60LV-KK, FJ40L-A, FJ40L-KJA, FJ40L-KJK, FJ40LV-A, FJ40LV-AC, FJ40LV-KCJA, FJ40LV-KCJK, FJ45LP-KK, FJ55LG-, FJ55LG-KA, FJ55LG-KK, FJ60LG-KA, FJ60LV-KK
View related parts
Toyota Land Cruiser Bearing, Ball
Part Number: 90363-45079
$54.73 MSRP: $76.50
You Save: $21.77 (29%)
Product Specifications
- Other Name: Bearing, Ball(For Clutch Release Hub)
- Comment: (FOR CLUTCH RELEASE HUB)
- Replaces: 90363-45015, 90363-45015-85
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1969-1975 Toyota Land Cruiser | 6 Cyl 3.9L, 6 Cyl 4.2L | 2F, F; FJ40L-A, FJ40L-KJA, FJ40LV-A, FJ40LV-AC, FJ40LV-KCJA, FJ55LG-, FJ55LG-KA
View related parts
Toyota Land Cruiser Bearing, Ball
Part Number: 90363-45015
$54.73 MSRP: $76.50
You Save: $21.77 (29%)
Product Specifications
- Other Name: Bearing, Ball(For Clutch Release Hub)
- Comment: (FOR CLUTCH RELEASE HUB)
- Replaced by: 90363-45079
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1969-1974 Toyota Land Cruiser | 6 Cyl 3.9L | F; FJ40L-A, FJ40LV-A, FJ40LV-AC, FJ55LG-
View related parts
Toyota Land Cruiser Hub, Clutch Release Bearing
Part Number: 31231-60080
Product Specifications
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1985-1987 Toyota Land Cruiser | 6 Cyl 3.4L | 3B; BJ70LV-MNK, BJ70LV-MRK
View related parts
Toyota Land Cruiser Hub, Clutch Release Bearing
Part Number: 31231-60010
Product Specifications
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1969-1975 Toyota Land Cruiser | 6 Cyl 3.9L, 6 Cyl 4.2L | 2F, F; FJ40L-A, FJ40L-KJA, FJ40LV-A, FJ40LV-AC, FJ40LV-KCJA, FJ55LG-, FJ55LG-KA

Toyota Land Cruiser Release Bearing

If you are in demand for superior quality and affordable OEM Toyota Land Cruiser Release Bearing, then shop with us! We own a wide range of the reduced-priced genuine Toyota Land Cruiser Release Bearing. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Land Cruiser Release Bearing Parts Questions & Experts Answers

Hub, Clutch Release Bearing
31231-60070
Q: How to replace Release Bearing on Toyota Land Cruiser?
A:
To remove the component, first disconnect the negative cable from the battery, then remove the transmission. Disengage the clutch release lever from the ballstud and take out the bearing and lever. For inspection, hold the bearing by the outer race and rotate the inner race while applying pressure; if it doesn't turn smoothly or is noisy, replace the bearing or hub assembly with a new one. Wipe the bearing with a clean rag and check for damage, wear, and cracks, avoiding immersion in solvent as it is sealed for life. Also, inspect the release lever for any cracks or bends. For installation, lubricate the bearing surface of the input shaft retainer with high-temperature grease, and apply the same grease to the input shaft splines to facilitate sliding through the clutch hub. Lubricate the release lever ball socket, lever ends, and release cylinder pushrod socket with high-temperature grease. Attach the retaining clips and the release bearing to the release lever, then slide the release bearing onto the transmission input shaft bearing retainer while passing the end of the release lever through the opening in the clutch housing, ensuring the clutch release lever is firmly seated on the ballstud. Apply a light coat of high-temperature grease to the face of the release bearing where it contacts the pressure plate diaphragm fingers. Finally, complete the installation by reversing the removal steps.
