How to replace the Brake Pad Set on a Toyota Sienna?

Remove the cap from the brake fluid reservoir, then loosen the wheel lug nuts, raise the front or rear of the vehicle, and support it securely on jackstands while blocking the wheels at the opposite end. Remove the wheels and work on one brake assembly at a time, using the assembled brake for reference if necessary. Inspect the brake disc carefully; if machining is necessary, remove the disc to also take out the pads. Push the piston back into its bore to create space for the new brake pads, using a C-clamp for this task, and ensure the fluid in the master cylinder does not overflow, siphoning off some if needed. When replacing the front brake pads, wash the brakes with brake cleaner before disassembly, and maintain order while reading the captions under each illustration. When removing the caliper mounting bolts, use a second wrench to hold the hex on the sliding pin. Upon reinstalling the caliper, tighten the mounting bolts to the specified torque, then firmly depress the brake pedal a few times to bring the pads into contact with the disc. Finally, check the brake fluid level and add if necessary, ensuring the brakes operate correctly before returning the vehicle to normal service.

Genuine Toyota Sienna Brake Pad Set

Disc Brake Pad Set

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Brake Pad Sets found

View related parts
Toyota Sienna Rear Disc Brake Pad Kit
Part Number: 04466-0E010
$51.77 MSRP: $72.00
You Save: $20.23 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake L ; Pad Kit, Disc Brake, Rear; Brake Pads, Rear Pads
- Manufacturer Note: MARK AK PA561
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Front Disc Brake Pad Kit
Part Number: 04465-0E010
$74.93 MSRP: $104.50
You Save: $29.57 (29%)
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake L ; Pad Kit, Disc Brake, Front; Brake Pads, Front Pads
- Manufacturer Note: MARK ADVICS PV565H
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Front Disc Brake Pad Kit
Part Number: 04465-08030
$75.74 MSRP: $105.63
You Save: $29.89 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake, Front; Brake Pads, Front Pads
- Manufacturer Note: MARK SELP PS558H
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Rear Disc Brake Pad Kit
Part Number: 04466-45010
$56.99 MSRP: $79.27
You Save: $22.28 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake, Rear; Brake Pads, Rear Pads
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Rear Disc Brake Pad Set
Part Number: 04466-28080
$52.35 MSRP: $72.80
You Save: $20.45 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake, Rear; Brake Pads, Rear Pads
- Manufacturer Note: MARK SUMITOMO PS549
- Position: Rear
- Replaces: 04466-28050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2005 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L | 3MZFE; MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Disc Brake Pad Kit
Part Number: 04465-02560
$91.32 MSRP: $128.71
You Save: $37.39 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake; Brake Pads, Front Pads
- Manufacturer Note: MARK ADVICS VC084H
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts
Toyota Sienna Front Disc Brake Pad Set
Part Number: 04465-45021
$75.74 MSRP: $105.63
You Save: $29.89 (29%)
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake, Front; Brake Pads, Pad
- Position: Front
- Replaces: 04465-45010, 04465-45020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Disc Brake Pad Kit
Part Number: 04466-02460
$52.35 MSRP: $72.80
You Save: $20.45 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake; Brake Pads, Rear Pads
- Manufacturer Note: MARK NBK D6360-FF
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts

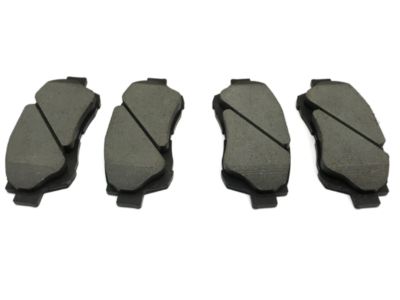

Toyota Sienna Front Disc Brake Pad Set
Part Number: 04465-45020
$75.74 MSRP: $105.63
You Save: $29.89 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Pad Kit, Disc Brake, Front
- Position: Front
- Replaced by: 04465-45021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-1999 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK

Toyota Sienna Brake Pad Set

If you are in demand for superior quality and affordable OEM Toyota Sienna Brake Pad Set, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Brake Pad Set. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Brake Pad Set Parts Questions & Experts Answers

Front Disc Brake Pad Kit
04465-08030
Q: How to replace the Brake Pad Set on a Toyota Sienna?
A:
Remove the cap from the brake fluid reservoir, then loosen the wheel lug nuts, raise the front or rear of the vehicle, and support it securely on jackstands while blocking the wheels at the opposite end. Remove the wheels and work on one brake assembly at a time, using the assembled brake for reference if necessary. Inspect the Brake Disc carefully; if machining is necessary, remove the disc to also take out the pads. Push the piston back into its bore to create space for the new brake pads, using a C-clamp for this task, and ensure the fluid in the master cylinder does not overflow, siphoning off some if needed. When replacing the front brake pads, wash the brakes with brake cleaner before disassembly, and maintain order while reading the captions under each illustration. When removing the caliper mounting bolts, use a second wrench to hold the hex on the sliding pin. Upon reinstalling the caliper, tighten the mounting bolts to the specified torque, then firmly depress the brake pedal a few times to bring the pads into contact with the disc. Finally, check the brake fluid level and add if necessary, ensuring the brakes operate correctly before returning the vehicle to normal service.
