Genuine Toyota Wiper Motor

Toyota Wiper Motor Parts Questions & Experts Answers

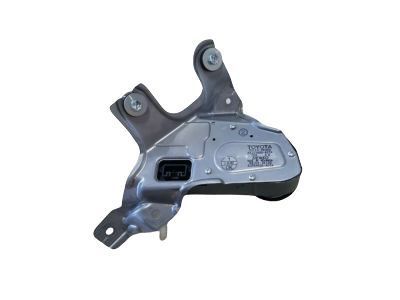

• Motor Assy, Rear Wiper
  85130-35070
  Q: How to check and troubleshoot wiper motor issues on 1996 through 2002 Toyota 4Runner?

  A: Make sure your battery is working well and has charged up properly before you blame the wiper issue. First, check the battery power on the wipers. If the battery works well, take out the wiper motor, use your hands to move the wiper arms, and fix binding linkage and pivots while you're at it. Then put the motor back. If the wipers continue to move slowly after checking connections and the ground wire, take the motor out and replace it - only do this if all electrical connections seem good. When wipers do not work when switched on, inspect the fuse first; if normal, connect a connecting wire between wiper motor and ground, then recheck to see if it works. First fix the ground connection if the motor works; if not, disconnect the electrical connector from the motor and measure electrical current. If voltage is present, check the motor. On 4Runners, you need to take off the liftgate trim panel to get to the rear wiper motor's terminals. To test the wiper motor, use jumper wires to join one battery terminal lead to the engine body at pin 2, and the other lead from the other battery terminal to the motor chassis. Start by grounding the battery power leads. Next, hook up one positive lead to terminal number 1 and the other negative lead to the center of the motor. Check that the motor turns fast and loud. When you run the motor slowly, move the lead from terminal 2 to another connection point outside the motor's stopping point. Then, join terminals 2 and 3 together, attach one battery wire to terminal 4 and the other to the metal motor frame, and test whether the motor stops as soon as the stop position is reached. If the motor doesn't operate, replace it. To make sure the rear wiper works well, use two wires to connect one battery positive end to terminal 1 and the negative end to terminal 3. You'll see the wiper motor spinning in a clockwise direction. Switching battery connections checks this motor for the opposite direction. Attach the positive lead from the battery to terminal 3 and the negative link to terminal 1, then test the current flow using different motor connections shown on the linkage diagram. If the rear motor doesn't operate, replace it. To get to the front wiper motor, take off the cowl, disconnect its electrical connector, and remove three wiper mounting bolts. Pull out the motor, pry off its lever arm, and disconnect it from the wiper link. Separated bolts from cowl allow you to take out the wiper linkage by sliding it through a vent opening. Reassemble everything in the reverse order when installing it back. Using a wrench, unfasten the rear wiper's arm cover and nut, enter the car through the liftgate, pull off the trim panel and service hole cover, unscrew the bolts holding the motor, disconnect the electric connection, then elevate the wiper motor by hand. Installation goes in reverse order.

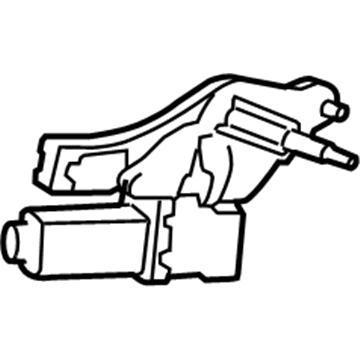

• Motor Assy, Windshield Wiper
  85110-07010
  Q: How to diagnose and address various wiper issues, as well as remove and reinstall the wiper motor on 1997 through 2001 Toyota Avalon?

  A: For slow wipers, check battery, inspect motor and connections, and replace if needed. If wipers fail, check fuse and test motor. If motor works, fix ground or check linkage. If not, replace motor. Check switch and wiring if no voltage. For one-speed wipers, test wiring and connections; replace switch if fine. For interval issues, test wiring; replace module if fine. If wipers don't park, check motor voltage; replace motor if voltage present, fix wiring if not. If wipers won't stop, disconnect switch wiring; replace switch if wipers stop, motor if not. If wipers won't retract, check obstructions and wiring; replace motor if fine. To remove motor, remove arms, cowl cover, disconnect connector, remove bolts and assembly, and remove motor from assembly. Reverse for reinstallation.
• Motor Assy, Windshield Wiper
  85110-04020
  Q: How to check and troubleshoot wiper motor issues on 1995 through 2004 Toyota Tacoma?

  A: If the wipers operate slowly, check the battery charge and condition if the battery is in good condition then disconnect the wiper motor and manually operating the wiper arms, check the linkage and pivots for any bind and grease or repair them before re installing the motor. If the wipers still move slow, then inspect the connections for loose or corroded contact points, especially the ground connection; if all connections are fine, replace the motor. In the event the wipers do not operate when switched on, there is a defect in the fuse; if the fuse is intact, join one end of a jumper wire to the wiper motor and the other to the ground and retry. If the motor works, correct the ground issue; otherwise, remove the electrical connector from the motor and check the voltage level. If there is no voltage across the switch, then test it for continuity; if there is voltage across the motor, test the motor. To get to terminals of a rear wiper motor on 4Runner models, it is necessary to remove the liftgate trim panel. For T100 and Tacoma models, connect the positive terminal of the battery to terminal 3 and the negative to the motor body; ensure that the motor moves at low speed; switch the positive lead to terminal 2 and it should move at high speed. Open circuit terminal 3 while actively employing low speeds, short terminals 3 and 5, connect the positive lead to terminal 6 in order to ensure the motor stops at its stop position. If the motor is not functioning properly, then this motor has to be replaced. For the Tacoma models produced in 1998, it is advisable to perform the test fast in order not to overheat the coil. Touch terminal 5 with the positive terminal of the battery and terminal 4 or the body of the motor to check that the speed is low, then connect the positive terminal to terminal 3 to check for high speed. Perform the same on other terminals while making sure that the motor comes to the stop position. If the motor does not operate then it needs to be replaced. Employ jumper cables, attach the positive terminal of the battery to the terminal 1 and the negative terminal to the terminal 3, confirm if the motor rotates in a clockwise manner, and reverse the cables for the counterclockwise rotation. Test continuity between two specified terminals depending on the position of the motor link, replace the rear motor if it does not run. For removal, unfasten cowl, then unplug the electrical connector at the front wiper motor, undo the mounting bolts, take out the motor in conjunction with the lever arm and detach this from the wiper link. To remove the wiper linkage, unscrew the cowl bolts and pull the cowl through the vent hole and to replace it, do the reverse process. On the 4Runner models, the rear wiper motor can be accessed by removing the nut at the bottom of the wiper arm and flipping up the cover, then accessing the wiper motor through the lift gate by pulling out the trim panel and service hole cover, then removing the retaining bolts, and unplugging the electrical connector before lifting the wiper motor out of the vehicle and the reverse process for the installation.
