How to replace the rear crankshaft seal on a four-cylinder engine in a Toyota Camry?

Remove the engine/transaxle assembly and separate the transaxle from the engine. Remove the flywheel or driveplate and pry the Crankshaft Seal from the engine's rear, noting its depth for new seal installation. Clean the seal bore thoroughly. Lubricate the new seal's outside diameter and install it over the crankshaft end, ensuring the seal lip points towards the engine. Use a seal installation tool to press the new seal into place. If unavailable, use a large socket or blunt tool to drive the seal into the bore. Reinstall the flywheel or driveplate, reattach the transaxle to the engine, and reinstall the assembly.

How to replace the front crankshaft seal in V8 engine on 2003 through 2009 Toyota 4Runner?

Remove the timing bell and crankshaft timing belt sprocket. Note how far the seal is recessed in the bore, then cut away the seal lip with a razor knife. Cut away the crankshaft seal lip, then carefully pry the seal out of the engine with a screwdriver or seal removal tool, ensuring to wrap tape around the screwdriver tip to avoid scratching the housing bore or damaging the crankshaft, as damage can lead to leaks with the new seal. Clean the bore in the engine and coat the outer edge of the new seal with engine oil or multi-purpose grease, applying the same grease to the seal lip. Using a socket with an outside diameter slightly smaller than that of the seal, carefully drive the new seal into place with a hammer, ensuring it is installed squarely and to the same depth as the original; if a socket isn't available, a short section of large diameter pipe can be used. After installation, check the seal to ensure the spring didn't pop out of place. Reinstall the crankshaft timing sprocket and timing belt, then run the engine and check for oil leaks at the front seal.

How to replace the rear crankshaft seal in a four-cylinder engine on a Toyota Highlander?

Take off the transaxle assembly then disconnect the transaxle from the engine. Next, remove the driveplate. Pop off the Crankshaft Seal with the screwdriver from the rear of the automotive engine and be cautious not to harm the crankshaft or apply scratches on the seal bore. See how far the seal is engraved in the bore before pulling out to ensure that the next seal is inserted to that extent. Wipe the interior of the seal bore in the block with a shop towel to ensure that all the oil and dirt have been wiped out. Apply a film of oil on the outside diameter of the new seal and position it over the end of the crankshaft with the help of the accompanying illustration; the lip should face toward the engine side. When possible, secure a seal installation tool to push the new seal back into its position; otherwise, with a large socket, section of a pipe or a blunt tool, carefully push the new seal with equal force back into the seal hole and resting flat against the edge of the engine block. Lastly, the driveplate must be fixed followed by the transaxle to the engine.

Genuine Toyota Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

154 Crankshaft Seals found

View related parts

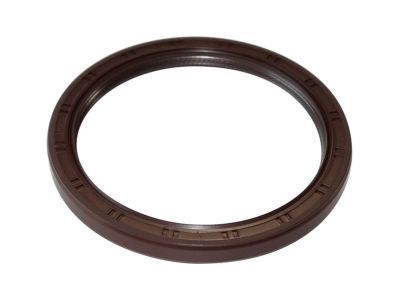

Toyota Seal, Type T Oil
Part Number: 90311-A0027
$43.79 MSRP: $61.21
You Save: $17.42 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Engine Rear Oil; Rear Main Seal, Rear Seal
- Replaces: 90080-31053, 90311-92003, 90311-92010, 90311-92004, 90311-92006, 90311-92009
Fits the following Toyota Models:
- 4Runner | 1987-2002 | DLX, LULI, SDT, SR5, SR5 Turbo, SR5B, SR5V, STD | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L
- Avalon | 1998-2022 | Limited, Touring, XL, XLE, XLE Premium, XLE Touring Or Touring, XLS, XSE | 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.5L
- Camry | 1998-2024 | CE, LE, N, No Grade, SE, XLE, XSE | 4 Cyl 2.2L, 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Highlander | 2002-2023 | Grande, Limited, Medium, STD, Sport | 4 Cyl 2.4L, 4 Cyl 2.5L, 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Pickup | 1987-1995 | DLX, SDT, SR5, SR5 Turbo, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
- RAV4 | 2006-2012 | Limited, STD, Sport, X | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- Sienna | 1998-2020 | CE, LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Solara | 1999-2008 | SE, SLE | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.3L
- T100 | 1993-1998 | DLX, SR5, STD | 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L
- Tacoma | 2015-2023, 1995-2004 | Base, DLX, Limited, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L, 6 Cyl 3.5L, 6 Cyl 4.0L
View More
View related parts

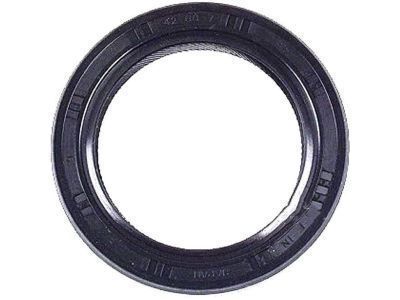

Toyota Seal, Oil
Part Number: 90080-31049
$9.85 MSRP: $13.77
You Save: $3.92 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Chain Or Belt Cover)
- Manufacturer Note: (L)
- Comment: (FOR TIMING CHAIN OR BELT COVER)
- Replaces: 90311-38059, 90080-31060
Fits the following Toyota Models:
- Celica | 2000-2005 | 4 Cyl 1.8L
- Corolla | 1998-2008 | CE, LE, S, STD, VE, XR, XRS | 4 Cyl 1.8L
- MR2 Spyder | 2000-2005 | 4 Cyl 1.8L
- Matrix | 2003-2008 | CE, LE, S, STD, XR, XRS | 4 Cyl 1.8L
View More
View related parts
Toyota Seal, Oil
Part Number: 90311-A0005
$18.92 MSRP: $26.45
You Save: $7.53 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Replaces: 90311-42019, 90311-42007, 90311-42037, 90311-42036
Fits the following Toyota Models:
- 4Runner | 2003-2009 | Limited, SR5 | 6 Cyl 4.0L, 8 Cyl 4.7L
- Avalon | 2005-2018 | Limited, XL, XLE, XLE Premium, XLE Touring Or Touring, XLS | 4 Cyl 2.5L, 6 Cyl 3.5L
- Camry | 2007-2017 | LE, N, SE, XLE, XSE | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- FJ Cruiser | 2007-2010 | 6 Cyl 4.0L
- Highlander | 2008-2017 | Grande, Limited, Medium, STD, Sport | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Land Cruiser | 2008-2021 | 8 Cyl 5.7L
- RAV4 | 2006-2012 | Limited, STD, Sport, X | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- Sequoia | 2008-2022 | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
- Sienna | 2006-2017 | CE, LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Tacoma | 2005-2016 | Base, Limited, SR5 | 4 Cyl 2.7L, 6 Cyl 3.5L, 6 Cyl 4.0L
View More
View related parts
Toyota Seal, Oil
Part Number: 90311-52022
$24.03 MSRP: $33.58
You Save: $9.55 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Chain Or Belt Cover)
- Comment: (FOR TIMING CHAIN OR BELT COVER)
Fits the following Toyota Models:
- Land Cruiser | 1992-1997 | 6 Cyl 4.0L, 6 Cyl 4.5L
View related parts
Toyota Seal, Engine Rear Oil
Part Number: 90311-90006
$54.73 MSRP: $76.50
You Save: $21.77 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Position: Rear
Fits the following Toyota Models:
- Supra | 1993-1998 | 6 Cyl 3.0L
View related parts
Toyota Seal
Part Number: 90311-46001
$19.15 MSRP: $26.76
You Save: $7.61 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal(For Crankshaft); Front Crank Seal
- Comment: (FOR CRANKSHAFT)
Fits the following Toyota Models:
- Supra | 1993-1998 | 6 Cyl 3.0L
View related parts
Toyota Seal, Type T Oil
Part Number: 90311-A0018
$11.72 MSRP: $16.39
You Save: $4.67 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Chain Or Belt Cover)
- Replaces: 90311-T0024, 90311-38078, 90311-38096, 90311-A0014, 90080-31072, 90311-38080, 90311-38089
Fits the following Toyota Models:
- C-HR | 2017-2022 | 4 Cyl 2.0L
- Camry | 2002-2011 | LE, SE, XLE | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Celica | 2005 | 4 Cyl 1.8L
- Corolla | 2005-2024 | CE, ECO, ECOSW, LE, S, STD, XR, XRS | 4 Cyl 1.8L, 4 Cyl 2.0L, 4 Cyl 2.4L
- Corolla iM | 2017-2018 | N | 4 Cyl 1.8L
- Highlander | 2001-2007 | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.3L
- Matrix | 2005-2014 | CE, LE, S, STD, XR, XRS | 4 Cyl 1.8L, 4 Cyl 2.4L
- Prius | 2010-2022 | E, G, L, S | 4 Cyl 1.8L
- Prius AWD-e | 2019-2022 | 4 Cyl 1.8L
- Prius Prime | 2017-2022 | 4 Cyl 1.8L
View More
View related parts
Toyota Seal
Part Number: 90311-42035
$11.45 MSRP: $16.01
You Save: $4.56 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal(For Crankshaft); Front Crank Seal, Oil Seal
- Comment: (FOR CRANKSHAFT)
- Replaces: 90311-42028, 90311-42032, 90311-42034
Fits the following Toyota Models:
- Camry | 1997-2001 | CE, LE, XLE | 4 Cyl 2.2L, 6 Cyl 3.0L
- Celica | 1996-1999 | GT, ST | 4 Cyl 1.8L, 4 Cyl 2.2L
- RAV4 | 1996-2000 | 4 Cyl 2.0L
- Solara | 1999-2002 | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L
View More
View related parts
Toyota Seal, Oil
Part Number: 90311-38089
$11.72 MSRP: $16.39
You Save: $4.67 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Replaced by: 90311-A0018
Fits the following Toyota Models:
- Camry | 2003-2011 | LE, SE, XLE | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Celica | 2005 | 4 Cyl 1.8L
- Corolla | 2005-2013 | CE, LE, S, STD, XR, XRS | 4 Cyl 1.8L, 4 Cyl 2.4L
- Highlander | 2003-2007 | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.3L
- Matrix | 2005-2014 | CE, LE, S, STD, XR, XRS | 4 Cyl 1.8L, 4 Cyl 2.4L
- Prius | 2010-2012 | E, G, L, S | 4 Cyl 1.8L
- Prius V | 2012 | 4 Cyl 1.8L
- RAV4 | 2003-2009 | Limited, Sport, X | 4 Cyl 2.0L, 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- Solara | 2006-2007 | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L
View More
View related parts
Toyota Seal, Engine Rear Oil
Part Number: 90311-92006
$43.79 MSRP: $61.21
You Save: $17.42 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: *132
- Position: Rear
- Replaced by: 90311-A0027
Fits the following Toyota Models:
- 4Runner | 1991-2002 | DLX, LULI, SR5, SR5B, SR5V, STD | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L
- Avalon | 2005-2008 | Limited, XL, XLS | 6 Cyl 3.5L
- Camry | 2007-2009 | LE, XLE | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- Highlander | 2008-2009 | Grande, Limited, Sport, STD | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L
- Pickup | 1991-1995 | DLX, SR5, STD | 4 Cyl 2.4L, 6 Cyl 3.0L
- RAV4 | 2006-2009 | Limited, Sport, X | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- Sienna | 2006-2009 | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L
- T100 | 1993-1998 | DLX, SR5, STD | 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L
- Tacoma | 1995-2004 | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L
- Tundra | 2000-2005 | DLX, Limited, SR5 | 6 Cyl 3.4L, 6 Cyl 4.0L, 8 Cyl 4.7L
View More
View related parts
Toyota Seal, Engine Rear Oil
Part Number: 90311-99010
$53.66 MSRP: $75.00
You Save: $21.34 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: (J)
- Position: Rear
- Replaced by: 90311-A0006
Fits the following Toyota Models:
- 4Runner | 2003-2024 | Limited, SR5 | 4 Cyl 2.7L, 6 Cyl 4.0L, 8 Cyl 4.7L
- FJ Cruiser | 2007-2014 | 6 Cyl 4.0L
- Tacoma | 2005-2009 | Base | 4 Cyl 2.7L, 6 Cyl 4.0L
- Tundra | 2010-2015, 2004-2006 | DLX, Limited, Platinum, SR5 | 6 Cyl 3.4L, 6 Cyl 4.0L, 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
View More
View related parts
Toyota Seal, Engine Rear Oil
Part Number: 90311-95013
$42.00 MSRP: $58.70
You Save: $16.70 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal, Rear Seal
- Position: Rear
- Replaces: 90311-95012, 90311-95007
Fits the following Toyota Models:
- 4Runner | 2003-2009 | Limited, SR5 | 6 Cyl 4.0L, 8 Cyl 4.7L
- Land Cruiser | 1998-2021 | 8 Cyl 4.7L, 8 Cyl 5.7L
- Sequoia | 2001-2022 | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
- Tundra | 2007-2021, 2000-2005 | DLX, Limited, Platinum, SR5 | 6 Cyl 3.4L, 6 Cyl 4.0L, 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
View More
View related parts
Toyota Seal, Type T Oil
Part Number: 90311-A0015
$7.81 MSRP: $10.91
You Save: $3.10 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Replaces: 90311-A0019, 90311-42043
Fits the following Toyota Models:
- Avalon | 2013-2018 | Limited, XLE, XLE Premium, XLE Touring Or Touring | 4 Cyl 2.5L, 6 Cyl 3.5L
- Camry | 2009-2017 | LE, N, SE, XLE, XSE | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- Highlander | 2008-2019 | Grande, Limited, Medium, STD, Sport | 4 Cyl 2.7L, 6 Cyl 3.3L, 6 Cyl 3.5L
- RAV4 | 2008-2018 | LE, Limited, SE, STD, Sport, X, XLE | 4 Cyl 2.4L, 4 Cyl 2.5L, 6 Cyl 3.5L
- Sienna | 2011-2014 | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L
- Venza | 2009-2017 | N | 4 Cyl 2.7L, 6 Cyl 3.5L
View More
View related parts
Toyota Seal, Engine Rear Oil
Part Number: 90311-A0006
$53.66 MSRP: $75.00
You Save: $21.34 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Crankshaft Seal, Rear Main Seal, Rear Seal
- Manufacturer Note: (L)
- Position: Rear
- Replaces: 90311-99010
Fits the following Toyota Models:
- 4Runner | 2003-2024 | Limited, SR5 | 4 Cyl 2.7L, 6 Cyl 4.0L, 8 Cyl 4.7L
- FJ Cruiser | 2007-2014 | 6 Cyl 4.0L
- Tacoma | 2005-2016 | Base, Limited, SR5 | 4 Cyl 2.7L, 6 Cyl 3.5L, 6 Cyl 4.0L
- Tundra | 2004-2015 | DLX, Limited, Platinum, SR5 | 6 Cyl 3.4L, 6 Cyl 4.0L, 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
View More
View related parts
Toyota Seal, Engine Rear Oil
Part Number: 90311-A0002
$31.29 MSRP: $43.73
You Save: $12.44 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal, Rear Seal
- Manufacturer Note: (L)
- Position: Rear
Fits the following Toyota Models:
- Sequoia | 2004-2022 | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
- Tundra | 2003-2021 | DLX, Limited, Platinum, SR5 | 6 Cyl 3.4L, 6 Cyl 4.0L, 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
View related parts
Toyota Seal, Oil
Part Number: 90311-48014
$12.91 MSRP: $18.04
You Save: $5.13 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
Fits the following Toyota Models:
- 4Runner | 1996-2001 | LULI, SR5B, SR5V | 4 Cyl 2.7L, 6 Cyl 3.4L
- Previa | 1991-1997 | DX, LE | 4 Cyl 2.4L
- T100 | 1993-1998 | DLX, SR5, STD | 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L
- Tacoma | 1995-2001 | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L
View More
View related parts
Toyota Seal
Part Number: 90080-31022
$11.38 MSRP: $15.90
You Save: $4.52 (29%)
ADD TO CART
Product Specifications
- Other Name: Seal(For Crankshaft)
- Manufacturer Note: (L)
- Comment: (FOR CRANKSHAFT)
- Replaces: 90311-42015, 90311-42026, 90311-42001, 90311-42003
Fits the following Toyota Models:
- 4Runner | 1984-1986 | DLX, SDT, SR5, SR5 Turbo, STD | 4 Cyl 2.4L
- Camry | 1983-2001 | CE, DLX, DX, LE, SE, STD, XLE | 4 Cyl 1.8L, 4 Cyl 2.0L, 4 Cyl 2.2L, 6 Cyl 2.5L, 6 Cyl 3.0L
- Celica | 1982-1997 | GT, GTS, ST, Supra, Turbo 4WD, Turbo All Trac | 4 Cyl 1.6L, 4 Cyl 1.8L, 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 2.8L
- Corolla | 1984-1986 | DX, LE, LE Limited, STD | 4 Cyl 1.6L, 4 Cyl 1.8L
- Cressida | 1982-1992 | GLX | 6 Cyl 2.8L, 6 Cyl 3.0L
- MR2 | 1990-1995 | 4 Cyl 2.0L, 4 Cyl 2.2L
- Pickup | 1981-1986 | DLX, SDT, SR5, SR5 Turbo, STD | 4 Cyl 2.2L, 4 Cyl 2.4L
- RAV4 | 1996-1997 | 4 Cyl 2.0L
- Solara | 1999-2002 | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L
- Supra | 1986-1992 | 6 Cyl 3.0L
View More
View related parts
Toyota Seal, Oil
Part Number: 90311-35040
$12.66 MSRP: $17.69
You Save: $5.03 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal(For Crankshaft)
- Comment: (FOR CAMSHAFT SETTING)
- Replaces: 90080-31066, 90311-35013, 90311-35008, 90311-35022, 90311-35003, 90311-35025, 90080-31013
Fits the following Toyota Models:
- Celica | 1986-1998 | GT, GTS, ST, Turbo 4WD, Turbo All Trac | 4 Cyl 1.6L, 4 Cyl 1.8L, 4 Cyl 2.0L, 4 Cyl 2.2L
- Corolla | 1982-1997 | D, DX, GTS, LE, LE Limited, Q, SR5, STD | 4 Cyl 1.6L, 4 Cyl 1.8L
- MR2 | 1985-1995 | GT, Super Charger | 4 Cyl 1.6L, 4 Cyl 2.0L, 4 Cyl 2.2L
- Paseo | 1992-1999 | 4 Cyl 1.5L
- Supra | 1989-1992, 1986-1987 | 6 Cyl 3.0L
- Tercel | 1990-1999, 1980-1988 | BASE, DLX, DX, LE, SR5, STD | 4 Cyl 1.5L
View More
View related parts
Toyota Seal, Oil
Part Number: 90311-42036
$18.92 MSRP: $26.45
You Save: $7.53 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Replaced by: 90311-A0005
Fits the following Toyota Models:
- 4Runner | 2003-2005 | Limited, SR5 | 6 Cyl 4.0L, 8 Cyl 4.7L
- Land Cruiser | 2008-2021 | 8 Cyl 5.7L
- Sequoia | 2008-2022 | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
- Tundra | 2007-2021 | Limited, Platinum, SR5 | 6 Cyl 4.0L, 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L
View More
View related parts
Toyota Seal, Engine Rear Oil
Part Number: 90311-99009
$60.64 MSRP: $85.48
You Save: $24.84 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Rear Main Seal
- Position: Rear
- Replaces: 90311-99006
Fits the following Toyota Models:
- Land Cruiser | 1992-1997 | 6 Cyl 4.0L, 6 Cyl 4.5L

| Page 1 of 8 |Next >

1-20 of 154 Results

Toyota Crankshaft Seal Parts Questions & Experts Answers

Seal, Engine Rear Oil
90080-31053
Q: How to replace the rear crankshaft seal on a four-cylinder engine in a Toyota Camry?
A: Remove the engine/transaxle assembly and separate the transaxle from the engine. Remove the flywheel or driveplate and pry the Crankshaft Seal from the engine's rear, noting its depth for new seal installation. Clean the seal bore thoroughly. Lubricate the new seal's outside diameter and install it over the crankshaft end, ensuring the seal lip points towards the engine. Use a seal installation tool to press the new seal into place. If unavailable, use a large socket or blunt tool to drive the seal into the bore. Reinstall the flywheel or driveplate, reattach the transaxle to the engine, and reinstall the assembly.
Seal, Type T Oil
90311-42045
Q: How to replace the front crankshaft seal in V8 engine on 2003 through 2009 Toyota 4Runner?
A: Remove the timing bell and crankshaft timing belt sprocket. Note how far the seal is recessed in the bore, then cut away the seal lip with a razor knife. Cut away the crankshaft seal lip, then carefully pry the seal out of the engine with a screwdriver or seal removal tool, ensuring to wrap tape around the screwdriver tip to avoid scratching the housing bore or damaging the crankshaft, as damage can lead to leaks with the new seal. Clean the bore in the engine and coat the outer edge of the new seal with engine oil or multi-purpose grease, applying the same grease to the seal lip. Using a socket with an outside diameter slightly smaller than that of the seal, carefully drive the new seal into place with a hammer, ensuring it is installed squarely and to the same depth as the original; if a socket isn't available, a short section of large diameter pipe can be used. After installation, check the seal to ensure the spring didn't pop out of place. Reinstall the crankshaft timing sprocket and timing belt, then run the engine and check for oil leaks at the front seal.
Seal, Type T Oil
90311-A0027
Q: How to replace the rear crankshaft seal in a four-cylinder engine on a Toyota Highlander?
A: Take off the transaxle assembly then disconnect the transaxle from the engine. Next, remove the driveplate. Pop off the Crankshaft Seal with the screwdriver from the rear of the automotive engine and be cautious not to harm the crankshaft or apply scratches on the seal bore. See how far the seal is engraved in the bore before pulling out to ensure that the next seal is inserted to that extent. Wipe the interior of the seal bore in the block with a shop towel to ensure that all the oil and dirt have been wiped out. Apply a film of oil on the outside diameter of the new seal and position it over the end of the crankshaft with the help of the accompanying illustration; the lip should face toward the engine side. When possible, secure a seal installation tool to push the new seal back into its position; otherwise, with a large socket, section of a pipe or a blunt tool, carefully push the new seal with equal force back into the seal hole and resting flat against the edge of the engine block. Lastly, the driveplate must be fixed followed by the transaxle to the engine.
