Question 1

How to Remove and Install Car Speakers and the Radio/Navigation Unit on a 2007-2015 Toyota Avalon?

Accepted Answer

Take the battery cable away from the negative terminal of the battery. On Avalon models, remove the center trim panel. When you open the navigation unit cover, take out the fasteners. Its backside will appear. Pull the radio unit outward, disconnect its wires, and unplug the antenna cable. Take off the screws on either side of the audio/navigation unit's mounting points and easily slide it forward. Unscrew the radio unit from the mounting brackets, pull it outwards to get to the backside, and unplug the connected parts from the heater and A/C control panel. Then separate the radio portion from the navigation portion. Installation is the reverse of removal. Unplug the speaker from the door panel, and take off all the screws that keep it in place to quickly pull it out. Detach the wiring connection and take out the speaker from the car. Installation is the reverse of removal. Start by using a trim tool to remove the speaker covers carefully. Take off the screws, and take the speakers out by pulling them up. Unplug the cable connection, and take the speaker apart line by line. Installation is the reverse of removal. Take out the back seats, then remove the package shelf in back. Take out the mounting screws, then lift the speaker up. Hit the release button on the connector and take out the speaker from where it's attached to the shelf. Installation is the reverse of removal.

Question 2

How to Remove and Install Car Speakers on a 2003-2009 Toyota 4Runner?

Accepted Answer

To replace the radio, first disconnect the cable from the negative battery terminal and disable the airbag system. Next, remove the center cluster trim panel, then take out the radio retaining bolts to detach the radio from the instrument panel assembly, pulling it out and disconnecting the antenna lead and electrical connector. After that, remove the left and right mounting brackets from the radio by taking out the four bolts from each bracket. For door speakers, remove the door trim panel, disconnect the electrical connector by depressing the release tab, and remove the speaker mounting screws before taking out the speaker. The installation process is the reverse of removal. For door tweeters, remove the door trim panel, disconnect the tweeter electrical connector, and remove the two tweeter mounting bolts to take out the tweeter, with installation being the reverse of removal. The optional front center speaker, located in the top of the instrument panel, requires the instrument panel to be removed before taking out the front speaker mounting bolts and the speaker itself, with installation being the reverse of removal. The optional rear luggage compartment speaker, located on the right side of the luggage compartment, necessitates extensive trim panel disassembly, starting with the removal of the tonneau cover retractor sub-assembly, tailgate weatherstrip, deck board sub-assembly, rear floor mat support plate, right deck floor box, rear deck trim cover, right upper deck trim side board, right side trim box assembly, right rear door scuff plate, right rear door opening trim weatherstrip, right deck trim side panel assembly, and right inner roof side garnish assembly. After disconnecting the speaker electrical connectors, remove the five speaker mounting bolts and the speaker, with installation being the reverse of removal. For rear tweeters, also located in the luggage compartment area at the upper ends of the O-pillars, follow a similar extensive disassembly process, starting with the tonneau cover retractor sub-assembly and continuing through the various components until reaching the tweeter, disconnecting the electrical connector and removing the two mounting bolts before reinstalling in reverse order.

Question 3

How to Remove and Install Car Speakers on a 1995-2004 Toyota Tacoma?

Accepted Answer

Make sure to unlock the battery cable from the negative terminal of the battery. On automobiles with an anti-theft audio system, disable the lockout feature before yanking out the cable. First, take off the center bezel around the cluster of gauges, then undo the bolts holding the radio in place. Pluck the radio away from the panel while disconnecting its antenna wire and electrical connection. Uninstall the radio from its place on the dashboard. To put it back in place, just follow the steps in reverse order. Every door in all models comes standard with a speaker. You need to open the door trim panel, unscrew the speaker, and disconnect the electrical wire that connects to it. When removing a door trim panel-mounted tweeter, start by removing the electrical connector plug, then take out its retaining screws -- reinstallation follows these steps in reverse order.

Genuine Toyota Car Speakers

1032 Car Speakers found

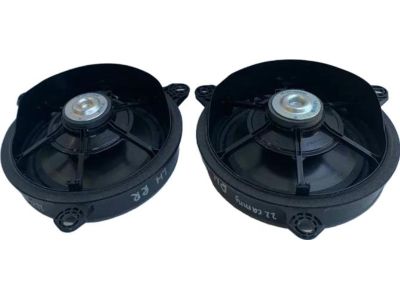

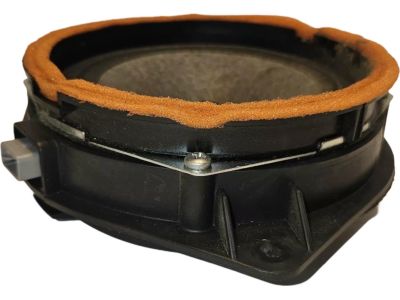

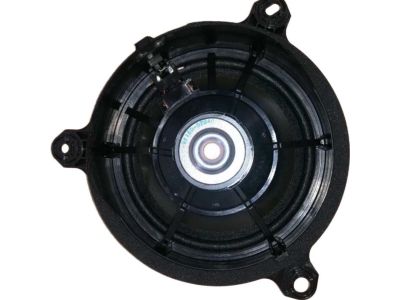

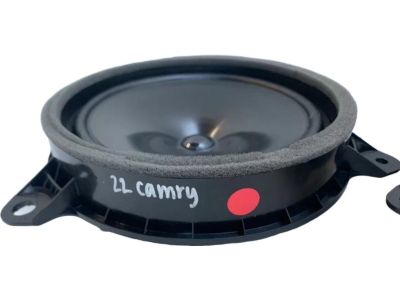

Toyota Speaker Assembly, Front

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, W/BRAC

Toyota Speaker Assembly, Front

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, Front

Toyota Speaker Assy, Stereo Component

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, W/BRAC

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, Front

Toyota Speaker Assembly, Radio

Toyota Speaker Assy, Rear

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, Radio

Toyota Speaker Assembly, VEHICL

Toyota Speaker Assy, Rear
